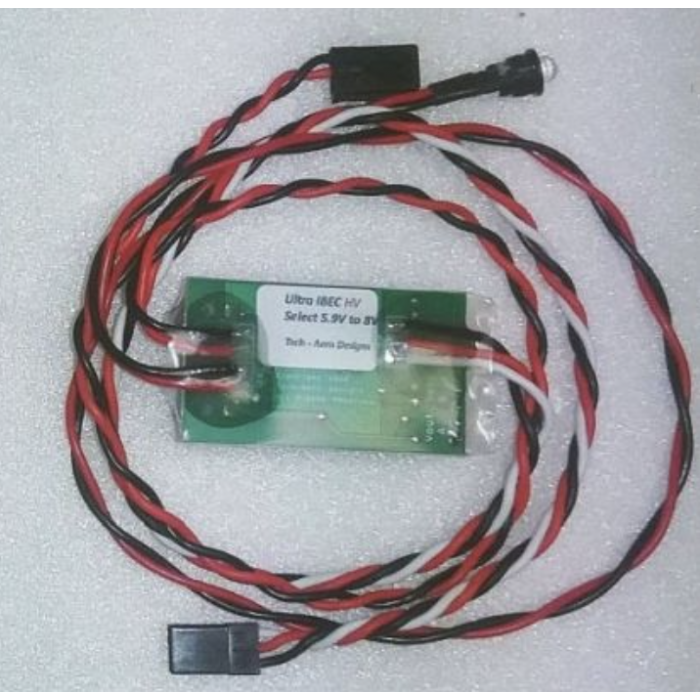

AMR - ULTRA IBEC HV - Red - 5.9-8V Ignition Battery Eliminator Circuit and Kill Switch
CAD $107.29
Availability:
In stock
Only 3 left
SKU:
14078
Distributor Number
TADUIBHV-Red
Manufacturer Number
UIBHV-Red
"Ultra IBEC HV" Ignition Battery Eliminator Circuit for higher voltage (HV) CDI's.
Compatible with the power requirements of single and multi-cylinder model CDI ignition modules via jumper selectable 5.9V, 6.3V, 7.3V and 8.0V voltage outputs.
Eliminates the need for a separate ignition battery and mechanical on/off switch.
Enhanced flexibility and safety via transmitter control of CDI ignition power from a spare receiver auxiliary channel.
Tech-Aero exclusive 4 stage filtering removes interference from CDI ignition noise in the wiring path to the receiver, permitting use with 2.4 GHz Spread Spectrum radio receivers.
Filter stages 1 & 2: An advanced 2nd order common mode LC power lead filter.
Filter stage 3: Triple power filter capacitors form a low pass filter and enhance peak impulse current delivery to the CDI module.
Filter stage 4: An optical isolator circuit prevents stray noise from feeding back into sensitive receiver electronics via the signal lead.
A high precision, very low dropout power regulator design further assures power receiver bus isolation with superior performance during peak current demand.
One IBEC model fits most: compatible with most battery chemistries commonly used for radio control use, with a practical input voltage range from 6.0V to 8.4V.
Bright 5mm LED CDI power on/off indicator with mounting bezel. Available LED colors are red, green, blue, amber and white.
High reliability Surface Mount components help reduce weight to only 0.8 oz and size to 1” x 1 ¾”.
Heavy duty 22 gauge twisted wire power extensions.
More Information
Distributeur numero
TADUIBHV-Red
Numéro Manufacturier
UIBHV-Red
Country
China
Brand
AMR
UPC
TADUIBHV-Red
