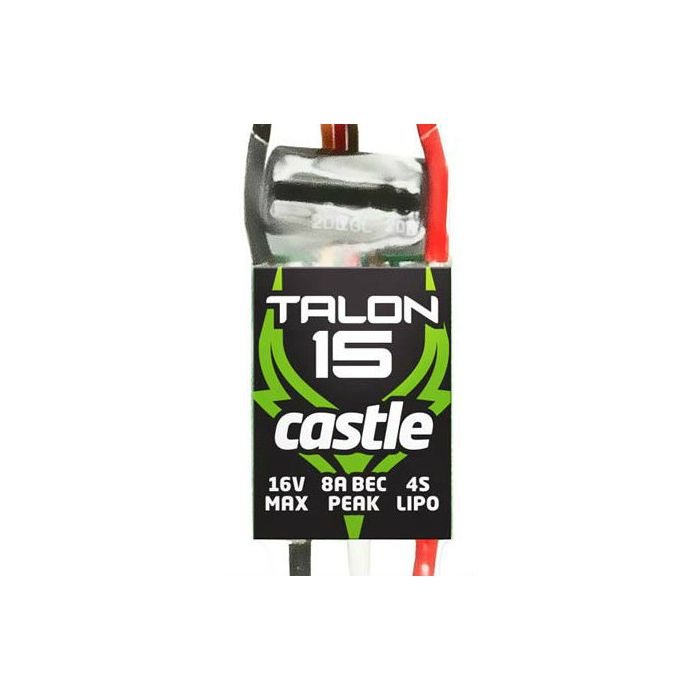

Castle Creations - Talon 15, 15AMP ESC, 4S MAX, HD BEC 010-0129-00
CAD $50.79
Availability:
Out of stock
SKU:
5036
Distributor Number
CSE010012900
Manufacturer Number
010-0129-00
Miniature Muscle
Talon 15 is a 15 amp controller with an outlandish 8 amp BEC. Applications range from foamies to micro, and sub-micro helis running up to 4S and pulling 15 amps. As with any Castle ESC, the Talon 15 offers Castle's industry-leading functions, and easy programming using the Castle Link USB adapter (coupon for free Castle Link included), or the Castle Field Link Portable Programmer (sold separately).
| Technical Specs | |
|---|---|
| Input Voltage Range: | MIN: 2S LiPo MAX: 4S LiPo |
| Max Continuous Amperage at full throttle: | 15 amps* |
| Max Voltage: | N/A |
| BEC Voltage: | 5.5 volts |
| BEC Output: | 8 amp peak** 3 amp continuous (always check servo draw prior to first flight) |
| Size: | Width: 0.58" (14.7mm) Length: 1.10" (27.9mm) Depth: 0.32" (8.1mm) |
| Weight (w/wires): | 0.25 oz. (7.2g) 0.12 oz (3.4g) without wires |
| Connectors: | N/A |
| Items Needed for Operation: |
|
| Product Use Statements: | N/A |
| Application Guidelines: | N/A |
| Programmability: | Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software. |
| Telemetry Link Capable: | Yes, except Battery Current |
| Tech Notes: | N/A |
Product Features:
|
Power System Alerts: |
The Talon ESCs are programmed to sound a number of tunes and codes using the motor as well as flashing LED patterns to alert users to certain conditions regarding their power system, such as over temperature, excessive load and locked head speed. |
|
Telemetry Capable: |
Telemetry has the potential not only to improve the safety of our models by monitoring battery voltages, ESC temperature, and other critical parameters, but it also creates other opportunities to get even more fun out of flying because you’ve essentially reduced the risks of “unknown” inevitable crashes. Think of the benefits to be had from alarms that will sound to warn you when there's interference about or if your receiver battery is running unexpectedly low. Requires purchase of Castle Telemetry Link for S.BUS2(Item # 010-0152-00) and compatible Futaba Radio or Castle Telemetry Link for X-BUS (Item# 010-0148-00) and a compatible Spektrum Radio. |
|
Warranty: |
Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase. |
|
Programmability: |
Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software. (A small subset of the settings available through Castle Link Windows software can be accessed via manual programming through the transmitter stick). |
|
Firmware Upgrade: |
Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit |
Castle Link Compatible
With the Castle Link USB Programming Kit you can use your Windows™ PC to easily program your controller. Castle Link includes all code for all Castle Link compatible hobby products in one convenient download. Note: Castle Link software requires a Castle Link USB Adapter and a computer that is running Windows. Castle Link is compatible with Windows Vista, Windows 7, Windows 8 and Windows 10. Macintosh users may take advantage of software such as Parallels Desktop, VMware Fusion, or Apple's Boot Camp along with Windows Vista, Windows 7, Windows 8, or Windows 10 to run the Castle Link software, provided the Macintosh has an Intel processor. Macintosh installation is not supported by Castle Creations.
Additional Castle Link benefits include:
- Access expanded programming and parameters for Castle controllers (see overview below)
- Access to all firmware updates, including added features sets released from Castle Engineering, at no charge.
- Intuitive Demo Mode capability
- Ability to default ESC to factory settings
- Ability to save setup profiles for later use
- Ability to download and view data logs (on applicable controllers)
More Information
Distributeur numero
CSE010012900
Numéro Manufacturier
010-0129-00
Country
USA
Brand
Castle Creations
UPC
819326010699
