Great Planes - SPINNER 2-3/4" ALUMINUM

CAD $72.29
Availability: Out of stock
SKU:
14196
Distributor Number
GPMQ4555
Manufacturer Number
GPMQ4555

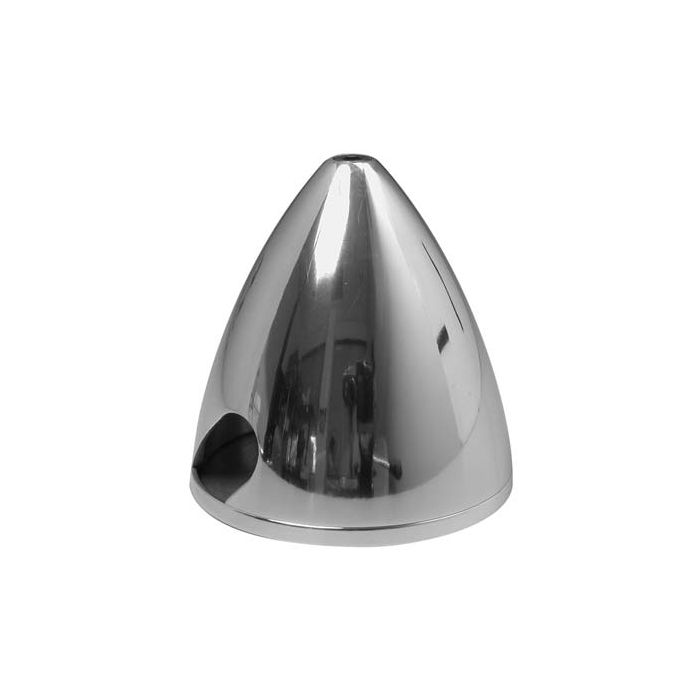

This is a Two-Blade Aluminum Spinner w/Aluminum Backplate from Great Planes.

FEATURES: Machined For Accuracy, Then Polished To A Gleaming Finish.
          Easy To Install, Having A Bolt-On Design, Centers Each Spinner
            Perfectly On Its Baseplate.
          Spinner Cone Is Recessed To Mate Into the Spinner Backplate.  The
            Rear Of The Spinner Is Flat, Without An Overhanging Cone.
          Includes Black 10-32 Bolt That Holds Spinner Cone to Backplate.
          Adapter Kits For Different Engine Sizes Are Available Separately.
            (See COMMENTS)

INCLUDES: One Aluminum Spinner Cone
          One Aluminum Backplate (See Specs For Sizes)
          One 10-32 x 1-1/2" Mounting Bolt
          One Box with Installation Instructions and Safety Tips

REQUIRES: One Spinner Adapter Kit (See COMMENTS)

SPECS:    Spinner Backplate Diameter:               2-3/4" (70mm)
          Spinner Backplate Mounting Ring Thickness: 3/16" (4mm)
          Spinner Backplate Hole Diameter:            3/8" (9.5mm)
            (The Adapter Kit Will Contain An Aluminum Bushing To Fit The
             Crankshaft Size.)
          Length From Back Of Backplate To Front Of Cone: 2-3/4 "
          Height Of Propeller Slot:   3/4" (19mm)
          Length Of Propeller Slot: 15/16" (24mm)

COMMENTS: Warning: Failure To Follow The Instructions Printed On The Box May
            Cause The Propeller To Separate From The Model.
          If The Spinner Cone Touches The Propeller At Any Point, Use A File
            Or MotoTool To Relieve This Area.
          Spinner Adapter Kit To Use Will Be Determined By Engine Crankshaft
            Size.  Use One Of The Following:
            GPMQ4581 - OS Max 20-40 FP, 25-45 FX & SF          (1/4")
            GPMQ4584 - OS Max 60 FP, 61 FX & SF, SuperTigre 61 (5/16")
            GPMQ4585 - OS Max FS 26-52 Surpass                 (1/4")
            GPMQ4588 - OS Max FS 70-120 Surpass, 140 RX        (5/16")
            GPMQ4589 - OS Max 1.08 FSR                         (3/8")
            GPMQ4590 - SuperTigre S 2500-4500                  (10mm)
More Information
Distributeur numero
GPMQ4555
Numéro Manufacturier
GPMQ4555
Country
China
Brand
Great Planes
UPC
735557645557
