Futaba - S3010 SERVO HT STANDARD BB

TECH NOTES

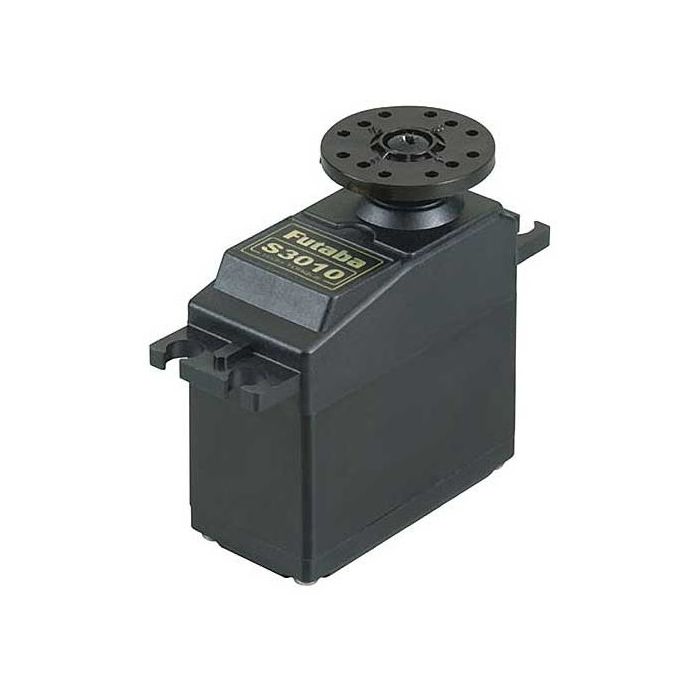

       This is the Futaba Standard Size Ball Bearing High Torque Servo.

        This servo can produce high-current draw from your batteries.
        If using NiMH or LiPo batteries, make sure they are capable
             of delivering approximately 2A for each servo.

FEATURES: Ideal for high-torque applications requiring a standard size servo
          Universal connector fits Futaba, Hitec, JR, KO Propo, Airtronics Z,
            and Tower Hobbies. Does not fit old Airtronics A plug w/out adapter
          Nylon gears
          One bearing pre-mounted on output shaft.
          One year warranty

INCLUDES: One Futaba standard size high torque servo with;
            One 1.4"  (35mm) diameter round servo wheel
            One 1.5"  (39mm) diameter 4 point servo wheel
            One 1.25" (32mm) diameter 6 point servo wheel
            Four 2mm x 11mm phillips screws
            Four rubber grommets & Four metal eyelets

REQUIRES: Small phillips screwdriver to mount to surface

SPECS:   Speed: 0.20 sec/60° @ 4.8V
                0.16 sec/60° @ 6.0V
         Torque: 72 oz-in (5.2 kg-cm) @ 4.8V and
                 90 oz-in (6.5 kg-cm) @ 6V
         Dimensions: 1.6 x 0.8 x 1.5" (1-9/16 x 13/16 x 1-1/2")
           (40 x 20 x 38mm)
         Weight: 1.5oz (1-7/16oz) (41g)
