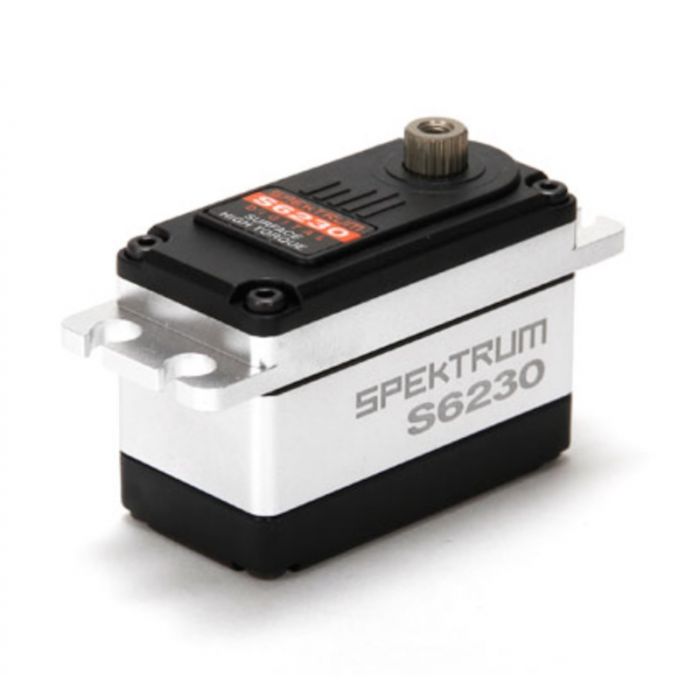

Spektrum - S6230 STD Digital Surface Servo 22.4KG
CAD $144.99
Availability:
In stock
Only 9 left
SKU:
10165
Distributor Number
SPMSS6230
Manufacturer Number
SPMSS6230
KEY FEATURES
- Removable wire harness with different lengths available
- 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
- Aluminum case for good heat dissipation
- Aluminum mounting tabs
- NMB dual main bearings
- 23T output shaft
- Waterproof
- 1-Year Limited Warranty
PRODUCT SPECIFICATIONS
- Size Category:
- Specialty
- Type:
- Digital
- Application:
- 1/10 Buggy, Truck, On-Road
- Torque:
- 311 oz-in (22.4kg-cm) @ 6.0V
- Speed:
- 0.14 sec/60 deg @ 6.0V, at no load
- Length:
- 1.61 in (41mm)
- Width:
- 0.82 in (20.8mm)
- Height:
- 1.18 in (30mm)
- Weight:
- 2.1 oz (59.5g)
- Bushing Or Bearing:
- Bearing
- Bearing:
- Dual
- Motor Type:
- Coreless
- Connector Type:
- Z-connector, removable
- Gear Type:
- Metal
- Gear Material:
- Steel, Aluminum
- Current Draw Idle:
- 9.8 mA @ 6.0V
- Current Draw Stall:
- 4900mA @ 6.0V
- Voltage:
- 6.0V
- Deadband:
- 4µs
OVERVIEW
The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.
More Information
Distributeur numero
SPMSS6230
Numéro Manufacturier
SPMSS6230
Country
TAIWAN
Brand
Spektrum
UPC
605482078532
