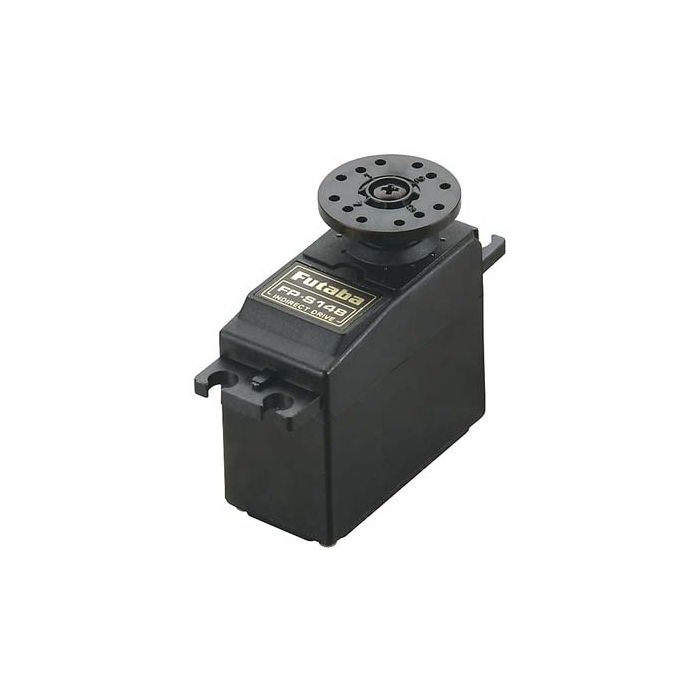

Futaba - S148 SERVO PRECISION J FM

TECH NOTES

 The S148 Standard Servo yields increased power and speed with a reduced size
 and weight compared to the S128, yet uses the same gears and servo cases.
  This servo is a replacement for the following servos.(S6,S17,S18,S23,S26,S28
  S38,S128)

         This servo can produce high-current draw from your batteries.
         If using NiMH or LiPo batteries, make sure they are capable
                       of delivering sufficient amps.

INCLUDES: One S148 Standard Precision Servo w/"J" connector and metal top
            bushing
          One accessory package with round rubber grommets, brass eyelets,
            mounting screws, round and star shaped servo horn
          Nylon gears
          One year warranty

SPECS:    Control system: Pulse width control, 1.52ms neutral
          Motor: 3-pole
          Power requirement: 4.8V or 6V (from receiver)
          Power consumption: 6V 8mA (at idle)
          Torque: 33 oz-in (2.4 kg-cm) @ 4.8V
                  42 oz-in (3.0 kg-cm) @ 6V
          Transit Time: 0.28 sec/60° @ 4.8V
                        0.22 sec/60° @ 6V
          Dimensions: 1.6 x 0.8 x 1.4" (1-9/16 x 13/16 x 1-7/16")
            (40 x 20 x 36mm)
          Weight: 1.6oz (1-9/16oz) (44g)
          Mounting on-center dimensions
            Width:    .4"
            Length:  1.9"
          Shaft Diameter: 5.88mm
