Pilot RC - PW-38AH STD servo 38KG
CAD $152.29
Availability:
Out of stock
SKU:
6075
Distributor Number
PW-38AH
Manufacturer Number
PW-38AH

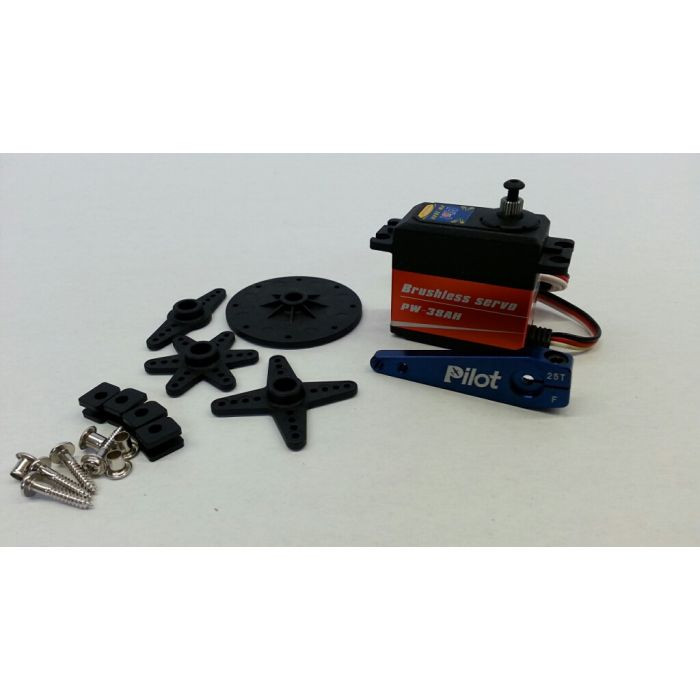

The PW-38AH is a great all round servo with 38Kg torque at 0.129s
Pilot-Rc’s range of servos offer a mix between torque, speed and importantly affordability. They are designed around modellers, which is why they come as standard with extra long leads and with an included Aluminium servo arm in order to hold up to even the toughest of jobs.
PW-38AH SPECIFICATIONS:
| Type | Brushless Digital |
| Voltage | 6.0v-8.4v |
| Torque | 34kg (475 oz) at 7.4v 38kg (528 oz) at 8.4v |
| Speed | 0.147s at 7.4v 0.129s at 8.4v |
| Weight | 76g |
| Dimensions | 40mm x 20mm x 37.8mm |
| Spline | 25T (futaba) |
| Gear | Steel |
| Bearings | Yes (x2) |
INCLUDED:
- x1 Pilot-Rc PW38AH servo, with 50cm servo wire
- x1 Pilot-Rc 1,6″ Aluminium servo arm (M3)
FURTHER TECHNICAL SPECIFICATIONS:
Average angle for pulse 1,000 usec to 2,000 usec: 120º
Limit pulse range: 690 usec – 2,310 usec
Limit angle range: 190º approx
Deadband width: 1 usec
Wire length: 50cm
Wire gauge: 26AWG
Stall current: 4.4A
Idle current: 30mAh
More Information
Distributeur numero
PW-38AH
Numéro Manufacturier
PW-38AH
Country
China
Brand
Pilot RC
Torque @ 8.4V
400.00 - 550.00 oz-in
UPC
112345679008
