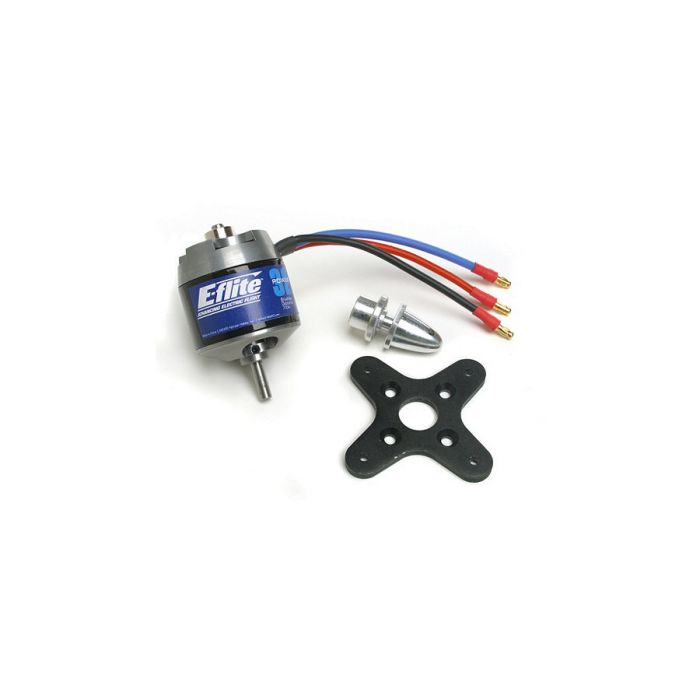

E-flite - Power 32 Brushless Outrunner Motor, 770Kv - EFLM4032A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CAD $139.29

Availability: Out of stock

SKU:

2807

Distributor Number

EFLM4032A

Manufacturer Number

EFLM4032A

Be the first to review this product

Details

Key Features

Equivalent to a 30- to 36-size glow engine for sport and scale airplanes weighing 3.5–6 lb (1.6–2.7 kg)
Ideal for 25- to 36-size 3D airplanes up to 4.5 lb (2 kg)
Ideal for models requiring up to 800 watts of power
High-torque, direct-drive alternative to inrunner brushless motors
Includes mount, prop adapter and mounting hardware
Quite, lightweight operation
External radial rotor design—5mm shaft can easily be reversed for alternative motor installations
High-quality construction with ball bearings and hardened steel shaft
Slotted 14-pole outrunner design

Overview

The Power 32 is designed to deliver clean and quiet power for 30- to 36-size sport and scale airplanes weighing 3.5 to 6 pounds (1.6 to 2.7 kilograms), 25- to 36-size 3D airplanes up to 4.5 pounds (2 kilograms), or models requiring up to 800 watts of power. It's an especially good match for the Gee Bee Tiger Moth, TopFlite DC-3, Phoenix Sonic 25 and 3D airplanes such as the E3D.

Product Specifications

Type:	Brushless outrunner
Size:	Replacement for a 30- to 36-size glow engine
Bearings or Bushings:	One 5 x 14 x 5mm Bearing, and One 5 x 11 x 5mm Bearing
Wire Gauge:	14
Recommended Prop Range:	11x7 to 14x10, (10x10E tested on 5S in Sundowner 36)
Voltage:	12–16.8
RPM/Volt (Kv):	770
Resistance (Ri):	.02 ohms
Idle Current (Io):	2.40A @ 10V
Continuous Current:	42A
Maximum Burst Current:	60A (15 sec)
Cells:	10–16 Ni-MH/Ni-Cd or 3–5S Li-Po
Speed Control:	60A brushless
Weight:	200 g (7.0 oz)
Overall Diameter:	42mm (1.70 in)
Shaft Diameter:	5mm (.20 in)
Overall Length:	50mm (1.90 in)
