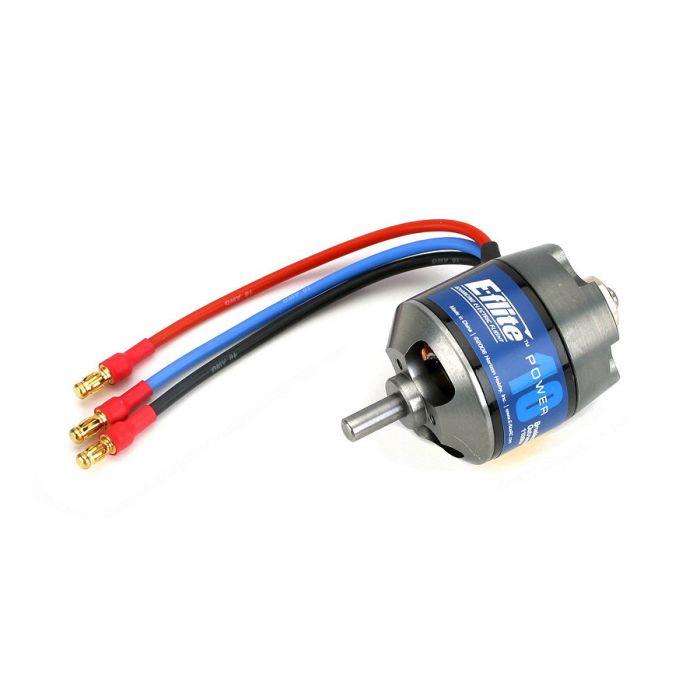

E-flite - Power 10 Brushless Outrunner Motor, 1100Kv - EFLM4010A
CAD $120.59
Availability:
Out of stock
SKU:
2803
Distributor Number
EFLM4010A
Manufacturer Number
EFLM4010A
Key Features
- Equivalent to a 10-size glow engine for 32–48 ounce (910–1360 g) airplanes
- Ideal for 3D airplanes weighing 28–36 ounces (790–1020 g)
- Ideal for models requiring up to 450 watts of power
- High-torque, direct-drive alternative to inrunner brushless motors
- Includes mount, prop adapters and mounting hardware
- External rotor design—5mm shaft can easily be reversed for alternative motor installations
- Slotted 14-pole outrunner design
- High-quality construction with ball bearings and hardened steel shaft
- Quiet, lightweight operation
Overview
The Power 10 is designed to deliver clean and quiet power for 10-size sport and scale airplanes weighing 32 to 48 ounces (910 to 1360 grams), 3D airplanes weighing 28 to 36 ounces (790 to 1020 grams), or models requiring up to 450 watts of power. It’s an especially good match for the E-flite Brio 10 for high speed F3A precision or artistic aerobatics.
Product Specifications
| Type: | Brushless outrunner motor |
| Size: | 10-size |
| Bearings or Bushings: | One 5 x 14 x 5mm Bearing, and One 5 x 11 x 5mm Bearing |
| Wire Gauge: | 16 |
| Recommended Prop Range: | 10x5–12x6 |
| Voltage: | 7.2–12 |
| RPM/Volt (Kv): | 1100 |
| Resistance (Ri): | .043 ohms |
| Idle Current (Io): | 2.10A @10V |
| Continuous Current: | 32A |
| Maximum Burst Current: | 42A (15 sec) |
| Cells: | 6–10 Ni-MH/Ni-Cd or 2–3S Li-Po |
| Speed Control: | 35–40A brushless |
| Weight: | 122 g (4.3 oz) |
| Overall Diameter: | 35mm (1.40 in) |
| Shaft Diameter: | 5mm (.20 in) |
| Overall Length: | 43mm (1.60 in) |
Needed to Complete40A ESC 6- to 10-cell Ni-MH/Ni-Cd or 2–3S Li-Po 10x5 to 12x6 electric props |
Kit Includes |
