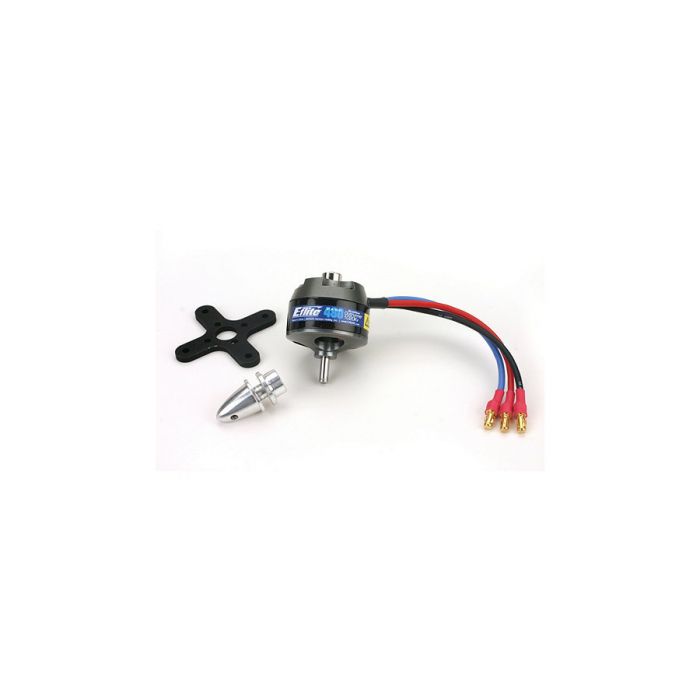

E-flite - Park 480 Brushless Outrunner Motor, 1020Kv
CAD $101.59
Availability:
Out of stock
SKU:
5557
Distributor Number
EFLM1505
Manufacturer Number
EFLM1505
Key Features
- Perfect match for 3D park flyers weighing 20–30 oz (565–850 g)
- Ideal for scale park flyers 25–35 oz (710–990 g)
- Ideal for models requiring up to 275 watts of power
- High-torque, direct-drive alternative to inrunner brushless motors
- Includes mount, prop adapters, and mounting hardware
- External rotor design—4mm shaft can easily be reversed for alternative motor installations
- Slotted 14-pole outrunner design
- High-quality construction with ball bearings and hardened steel shaft
- Quiet, lightweight operation
Overview
The Park 480 Brushless Outrunner motor is designed to deliver clean and quiet power for 3D park flyers weighing 20 to 30 ounces (565 to 850 grams), scale park flyers weighing 25 to 35 ounces (710 to 990 grams), or models requiring up to 275 watts of power. It’s an especially good match for E-flite's Mini Edge 3D ARF (EFL2225) and Mini Funtana 3D ARF (EFL2075), and it would provide extreme power for sport park flyers such as the Mini Ultra Stick ARF (EFL2250).
Specifically this 1020Kv option can handle more current than the 920Kv version, so it is more efficient when matched with the Thunder Power Pro-Lite cells.
Product Specifications
| Type: | Brushless outrunner |
| Size: | Park flyer |
| Bearings or Bushings: | One 4 x 9 x 4mm Bearing, and One 4 x 10 x 4mm Bearing |
| Wire Gauge: | 16 |
| Recommended Prop Range: | 10x7 to 12x6 |
| Voltage: | 7.2 to 12 |
| RPM/Volt (Kv): | 1020 |
| Resistance (Ri): | .06 ohms |
| Idle Current (Io): | 1.10A @ 8V |
| Continuous Current: | 22A |
| Maximum Burst Current: | 28A (15 sec) |
| Cells: | 6–10 Ni-Cd/Ni-MH or 2–3S Li-Po |
| Speed Control: | 25A to 40A brushless |
| Weight: | 87 g (3.1 oz) |
| Overall Diameter: | 35mm (1.40 in) |
| Shaft Diameter: | 4mm (.16 in) |
| Overall Length: | 33mm (1.30 in) |
Needed to Complete25A–40A brushless ESC |
Kit Includes |
Articles, Reviews, How-Tos & More
More Information
Distributeur numero
EFLM1505
Numéro Manufacturier
EFLM1505
Country
China
Brand
E-flite
UPC
605482774243
