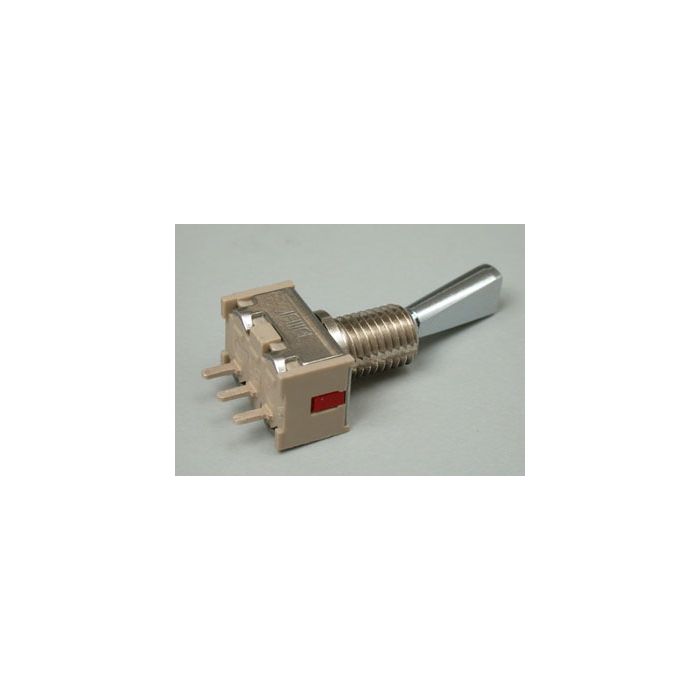

Futaba - Solder-On Three-Position Switch – Short

This is a 3-Position Short Toggle switch used in Futaba radios.
                  This will NOT work in the 9Z Series Radio.

FEATURES:  Three positions
           Chrome look flat Toggle switch.
           Ready to be mounted to PC board.

INCLUDES:  One 3-position toggle switch.

REQUIRES:  Installation into "out of warranty" radio.

SPECS:     Length of switch from base (top of threads): .42" (10.5mm)

COMMENTS:  Futaba provides these spare parts as a courtesy to those modelers
           with the skills and tools to replace the switches on their older,
           out-of-warranty, dropped or damaged radios.  Futaba provides no
           instructions and accepts no liability in the installation of
           these replacement switches.  REPLACING THESE SWITCHES MAY VOID
           YOUR WARARNTY on an IN-WARRANTY radio, and under no circumstances
           may Futaba be held responsible for damage done as a result of the
           switch replacement.

                 Switch               Part Number

             -8UA F/P non-Super and Super (airplane):
           A, D, E:                FUTM3676
              G:                   FUTM3677
              B, H:                FUTM3678
              C:                   FUTM3679
              F:                   FUTM3680

                -8UH F/P non-Super and Super (helicopter):
              A, D, G:             FUTM3676
              E:                   FUTM3677
              B, F:                FUTM3678
              C:                   FUTM3679
              SSw H:              FUTM3680

               -6VA (airplane):
             trainer:             FUTM3680
             all except trainer:  FUTM3676

               -6VH (heli) (has no trainer function):
             All except gear:     FUTM3676
             Gear/ch 5 6VH:       FUTM3678

               -5UA, 6XA and 6XAS (airplane):
             Ele, ail D/R:        FUTM3676
             Gear/Flap -air:      FUTM3676
             Gear - Heli:         FUTM3678
             Air Brake - Air:     FUTM3678
             IdleUp/ThrHold-Heli: FUTM3676

               -6YG:
             Gear:                FUTM3676
             For the D/R switch and Trainer switch you would need to contact
               the warranty center.

               -7UA F/P non-Super or Super (airplane):
             Ele/Ail D/R, gear, mix: FUTM3676
             Rudder D/R:             FUTM3676
             Mix:                    FUTM3679

               -7UH F/P non-Super or Super (helicopter):
             Ele/Ail D/R, Thr Hold:  FUTM3676
             Rudder D/R:             FUTM3676
             Ch 5/Ch 7:              FUTM3678
             Idle up:                FUTM3677
