Hitec - Mighty Micro Servo HS-85: Universal

TECH NOTES

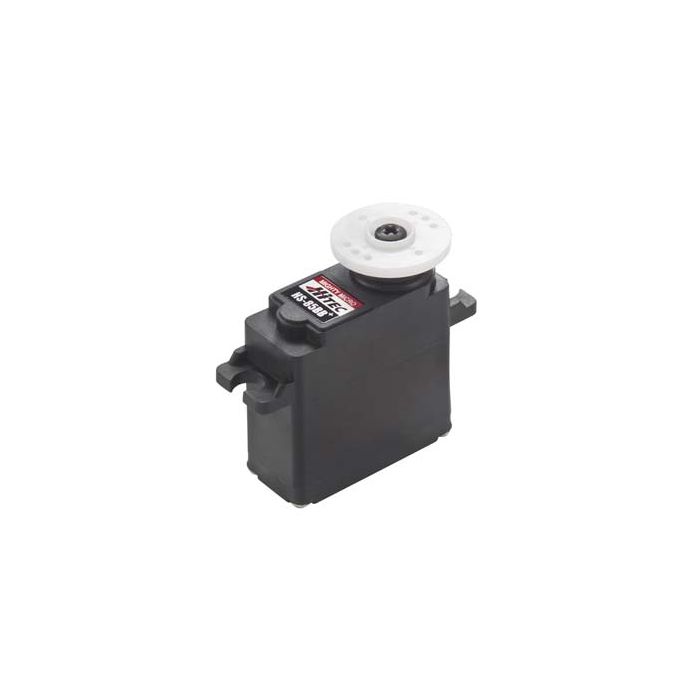

  This is the Hitec/RCD #31085S HS-85BB Mighty Micro Ball Bearing Servo with
          Universal Futaba J, Hitec S, JR and Airtronics Z Connector.
  Connector is compatible with all modern receivers and wiring accessories.

FEATURES:  Micro servo with ball bearing and plastic gears
           Great for small planes and hand launch gliders.

INCLUDES:  1  HS-85BB servo with pre-installed circular horn
           1  Straight horn
           1  "X" horn
           2  Black rubber grommets
           2  Brass servo eyelets
           2  Servo mount screws
           2  Black plastic vertical mount

SPECIFICATIONS:  Length- 29mm (1.1")       Weight- 20g (0.7oz)
                 Width - 13mm (0.5")       Torque- 2.7 kg-cm (37.8 oz-in)
                 Height- 30mm (1.1")       Speed - 0.18 sec/60°

COMMENTS:
          replacement parts:
                            6365 Gear set, HRCM5365
                            6366 Servo case set
                            6326 Micro horn set
                            6327 Micro hardware
                            6306 Vertical mount
                            8471 Ball bearing

           Also available with other connectors:

           Servo wire lead is about 5 1/2" long
           Only has 2 mount holes
