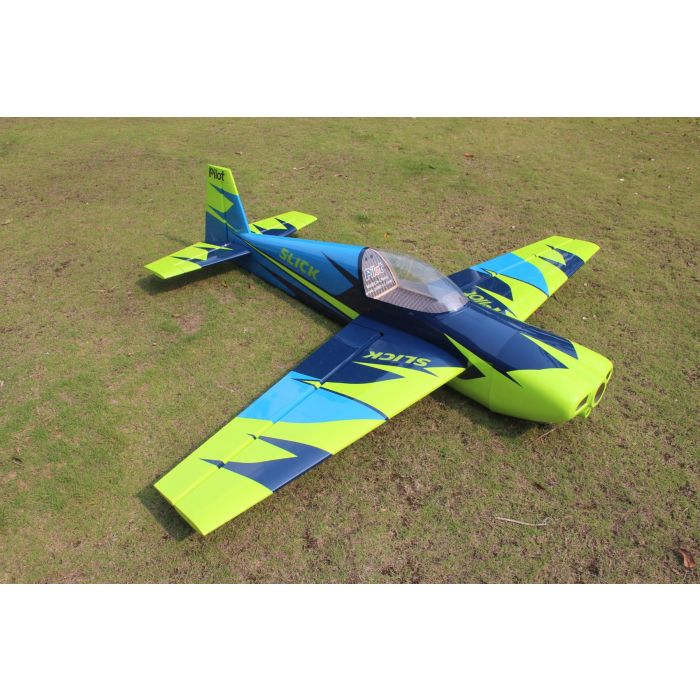

Pilot RC - Slick - 67'' Color 02 - Electric or 20cc - Green and Blue

Pilot-RC already surprised everyone with a new level of precision and agility with our extremely popular Laser. We have now taken all these great features and grown them into our new Slick.

The Pilot-RC Slick, as well as looking great and offering color schemes designed by legendary Italian designer Mirco Pecorari at Aircraft Studio Design, it once again flys as good as it looks, and that is really saying something!

All the crazy agility and manoeuvrability of the Laser, while keeping the friendly flying characteristics of Pilot-RC planes, the new Slick offers an even further improvement in precision and aero musical performance, feeling like a larger plane, a larger plane that can go nuts!

SPECIFICATIONS:

FEATURES:

• NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
• NEW! Patented quick assembly system for wings
• NEW! Quick assembly system for canopy. Especially useful for electric version, fast battery change!
• NEW! Patented quick assembly system for SFG
• Strong yet light weight design, specially developed for precision acrobatic and extreme 3D flying
• Highly prefabricated, experienced builders can have air ready in under a day
• Removable wings
• Laser engraved motor mounting position
• Designed for both 20cc engine or electric motor
• Internally mounted cowling – so no external screws exposed
• Included servo extension wires and wing bags

INCLUDED HARDWARE:

• Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
• Included wing bags
• Pre-prepared hinges ready to be installed and pre-mounted canopy
• Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
• Wheels, axels and wheel pants
• Pre-prepared pull-pull wires and pushrods with ball links
• Included spinner

REQUIRED HARDWARE:

Motor: 20cc or equivalent electric

*Please note that the setup of this plane accepts both electric or gas engine, however in order to use gas engine, firewall and engine box must be reinforced.

Servos: 4 high torque plus throttle // Uses x1 per aileron, x1 for elevator and x1 on rudder

*Please note that the servo slots are designed to accept a medium size servo (35mm x 15mm) however the wood has been prepared and marked so the hold can be easily enlarged to accept standard size servo.

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

PILOT-RC RECOMMENDED HARDWARE:

• Servos: Pilot-Rc PW20AH
• Servo arms: Pilot-Rc 1,2″ Aluminium arms
• Electric Motor Combo: Pilot-RC Power Pack for 67″ plane (3D acrobatic)
• Electric Motor & Servos Combo: Pilot-RC Power Pack for 67″ plane WITH servos (3D acrobatic)

Colour scheme Slick 02: Green and blue

References: Oracover 28-042, 21-053, 21-019 / Ultracote (royal green), HANU875, HANU905

Build information

COWL SIZE:

EXHAUST TUNNEL SIZE:

RUDDER HORNS AND PULL PULL LOCATION:

EXTENSION WIRE LENGTHS:

Throttle:
No extension required

Each aileron:
15cm
(to reach receiver direct)

Elevator:
67cm

Rudder:
Pull pull, no extension required

CENTER OF GRAVITY:

136mm
Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
