AMR - LASER - 60'' Color 07 - PNP 20% Electric

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CAD $1,054.99

Availability: Out of stock

SKU:

21961

Distributor Number

Las-60-07-PNP

Manufacturer Number

Las-60-07-PNP

In The Box

(1) Laser 60'' Color 07 - PNP
(4) A6380 Standard Digital HV High Torque High Speed Metal Gear Aircraft Servo
(1) Avian 80 Amp Brushless Smart ESC, 3S-8S
(1) Avian 5055-500Kv Outrunner Brushless Motor
(1) APC Electric Propeller,15 X 8E

Needed to Complete

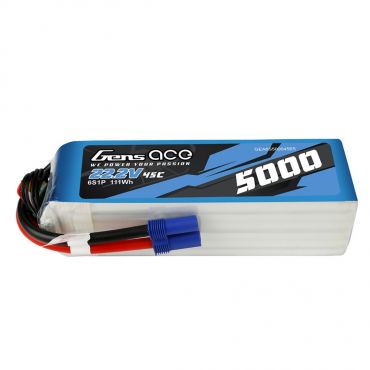

(2) Gens Ace 5000mAh 3S1P 45C 11.1V LiPo Pack With EC5 Plug OR (1) Gens Ace 5000mAh 6S1P 22.2V 45C LiPo EC5 Plug Soft Case

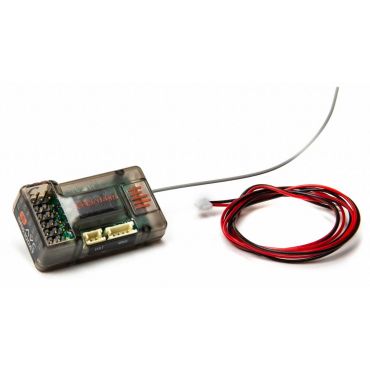

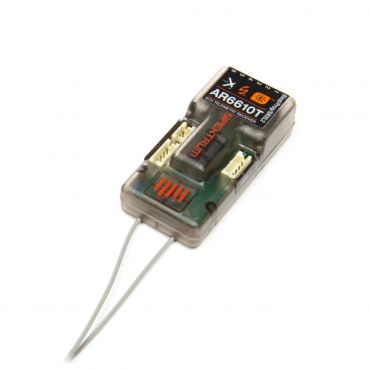

Receiver
Transmitter

Be the first to review this product

Details

SPECIFICATIONS:

Model:

Wingspan:

Lenght:

Wing aera:

Weight:

Laser

60″ (1.524mm)

57.3″ (1.455mm)

731 “² (4,720 cm²)

6.36lbs (2.89kg)

FEATURES:

NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
NEW! Patented quick assembly system for wings.
NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
NEW! Patented quick assembly system for SFG.
Strong yet light weight design, especially developed for precision aerobatic and extreme 3D flying
Highly prefabricated, experienced builders can have air ready in under a day
Removable wings
Laser engraved motor mounting position
Designed for electric motor
Included servo extension wires and wing bags
Push pull rudder link for more precise and direct response

PILOT-RC RECOMMENDED HARDWARE:

Servos: Pilot-Rc PW16AH (16Kg at 8,4v)
Servo arms: Pilot-Rc 1,2″ Aluminium arms (included with Pilot-Rc servos)
Electric Motor Combo: Pilot-RC Power Pack for 60″ plane (3D acrobatic)
Electric Motor & Servos Combo: Pilot-RC Power Pack for 60″ plane WITH servos (3D acrobatic)

Build information
COWL SIZE:

A: 203mm, B: 177mm, C: 210mm, D: 180mm

EXTENSION WIRE LENGTHS:
Throttle:
No extension required

Each aileron:
10cm
(to reach receiver direct)

Elevator:
70cm

Rudder:
70cm

*All these extension leads are included with the kit

CENTER OF GRAVITY:
142mm
Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.

More Information

Distributeur numero

Las-60-07-PNP

Numéro Manufacturier

Las-60-07-PNP

Country

China

Brand

AMR

Airplanes Selection

PNP

Engine Size Range (cc)
