Sullivan - Gold-N-Rod Flex,2mm,Nylon,36"

TECH NOTES

     This is the 36" (91.4cm)  Sullivan Gold-N-Rod Nylon Control Rod Set.
     Ideal for elevator, rudder and tailwheel control on aircraft models
                             under 10lbs (4536g).

FEATURES: Flexible, very easy to install and adjust and will last the life
            of the model
          Temperature stabilized to minimize thermal expansion
          Nonmetallic and fuel proof

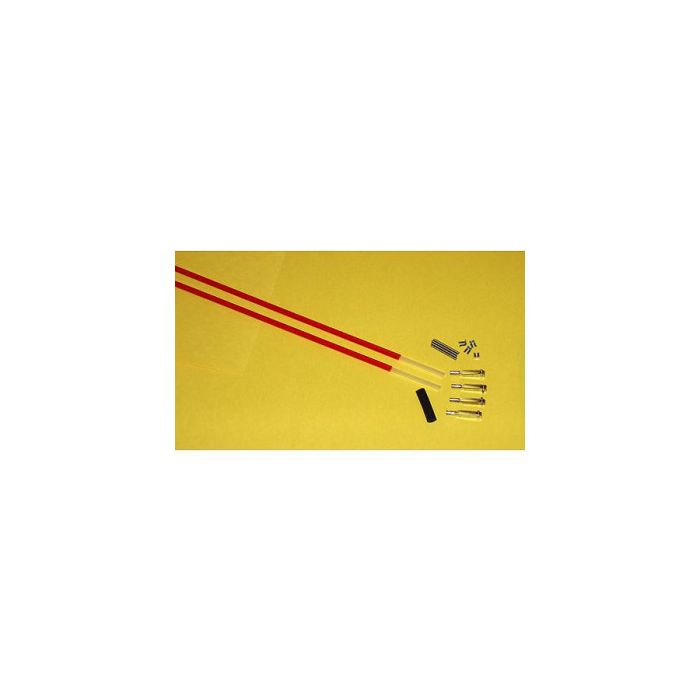

INCLUDES: Two red sheaths
          Two white rods
          Four 2mm Gold-N-Clevises with retaining clips
          Four 2mm studs
          Four clips
          One 1" (25mm) section of rubber tubing

REQUIRES: Cutting to length and attaching clevises according to instructions on
            back of header card

SPECS:    Length: 36" (91.4cm)
          Diameter of Red Outer Sheath: 0.16" (4.2mm)
          Stud Diameter: 0.078" (2mm)

COMMENTS: Following are common control applications and the Sullivan control
           rod part numbers for each application;

          Applications:         Models Under 10lbs:           Larger Models:

          Elevator, Rudder    573/504, 575, 506,           580/581, 517/518

          Tailwheel           580/581, 520, 521            584/585, 521

          Ailerons, Flaps     573, 577, 578                580, 508, 515
          Throttle            577, 578                     577, 578

          Nosegear, Retracts  575, 580, 578, 515           521, 584/585, 515

          Powerboat Rudder
          or Outboard Steering 578, 584, 517, 515          521, 584/585, 515

          Sailboat, Rudder    578, 584, 517, 580           515, 521, 584/585,
          Sail                511                          517/518

          Accessories         580/581, 575/506             580, 581, 578/514
                              578/514                      515, 511
