Hitec - Giant-Scale HS-755MG: Universal - HRC32755S

TECH NOTES

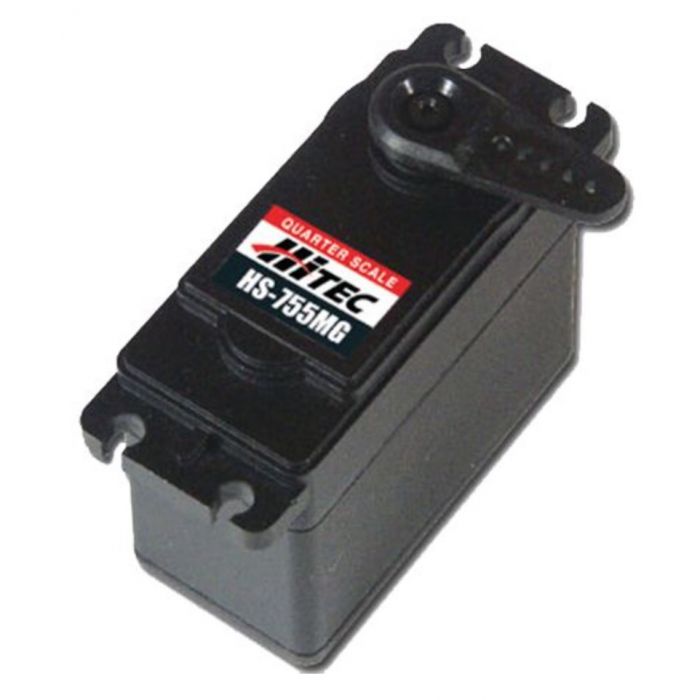

               This is the HS-755MG Quarter Scale Metal Geared
                     Dual Ball Bearing Servo from Hitec.

FEATURES: Metal geared
          Dual ball bearing output spline
          Water and dust tight
          Designed for use in large models

INCLUDES: One HS-755MG giant dual BB servo with Hitec/JR/Z tupe connector
          One servo accessory package containing:
          One 1" (26mm) single arm servo horn(pre-installed on servo)
          One 1.3" (33mm) single arm servo horn
          One 2.3" (58mm) dual arm servo horn
          One 1.7" (43mm) diameter servo wheel
          One 2.8" (71mm) dual arm servo horn
          Four brass eyelets
          Four servo mounting screws
          Four rubber grommets

REQUIRES: Installation

SPECS:    Length: 2.32" (59mm)
          Width: 1.14" (29mm)
          Height: 1.96" (50mm)
          Weight: 4.12oz (117g)
          Speed: .28 sec/60° @ 4.8V, .23 sec/60° @ 6V
          Torque: 166.64 oz in (12kg.cm) @ 4.8V, 199.97 oz in (14.4kg.cm) @ 6V

COMMENTS: This servo directly replaces the HS705MG servo from Hitec.
