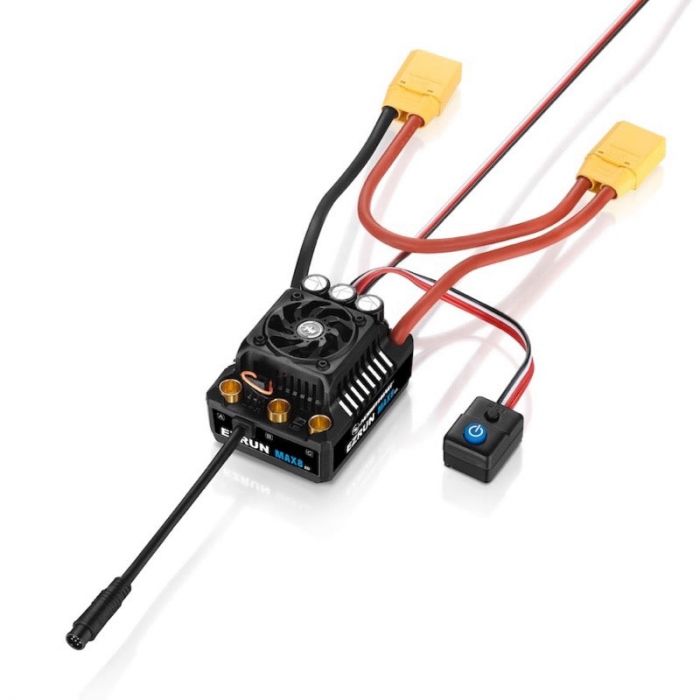

Hobbywing - EZRUN MAX8 G2 ESC
CAD $217.59
Availability:
Out of stock
SKU:
20686
Distributor Number
HWI30103203
Manufacturer Number
30103203
Features:
- The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in harsh conditions.
- Built-in ultra-powerful switch mode BEC with a continuous current of 6A, (15A max), and support for 6V/7.4V/8.4V output.
- Equipped with the most advanced and safe electronic switch.
- Supports up to 32-degree turbo timing. When used with the matching motor (such as EZRUN 4278SD), the maximum rpm can be increased by about 25%.
- Support LED program card, LCD G2 program box, OTA programmer (sold separately) to set the parameters of the ESC.
- Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, and current protection.
MAX 8 G2 ESC
Scale Vehicles 1/8th
Cont./Peak Current 160A / 1050A
Motor Mode Sensored and sensorless brushless motor
Input 3-6S Lipo
Motor Limit 4S Lipo: KV≤3000; 6S Lipo: KV≤2400 - 4278 size motor
BEC Output 6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
Programming Port shared with fan interface
Switch Mode Electronic Switch
Capacitor protection Yes
Waterproof Yes
Size (L.W.H)mm
60(L)x48(W)x40.5(H)mm
Weight (g) 192g
Input/Output Input： XT90 Output：6.5mm gold plug（female）
More Information
Distributeur numero
HWI30103203
Numéro Manufacturier
30103203
Country
China
Brand
Hobbywing
UPC
088718505475
