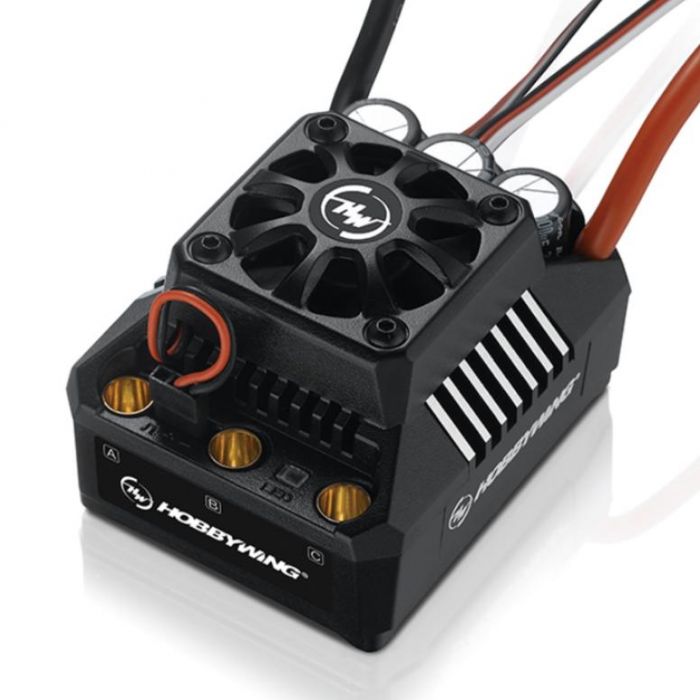

Hobbywing - EZRUN MAX6 ESC (3-8S) - 160A for 1/6 and 1/7th Size

• (1) Ezrun MAX6 ESC
• (3) 10 AWG, 200C Black wires for a brushless motor
• (1) Double sided tape
• (2) Heat shrink tube
• User's manual
• A HOBBYWING decal

Bottomline

• Compatible with sensorless brushless motors and sensored brushless motors (only in sensorless mode).
• Fully waterproof design for all weather conditions.
• Super internal switch-mode BEC with switchable voltage of 6V/7.4V and a cont. /peak current of 6A/25A for easily driving big torque servos and high voltage servos.
• Highly reliable electronic switch avoids troubles which may happen to traditional mechanical switch due to dirt, water, dash and etc.
• The built-in spark-proof circuit effectively protects not only battery and ESC connectors from damage but also users from physical injury (to hands) caused by strong electrical sparks
• produced at the battery and ESC connecting moment.
• Separate programming port to easily connect the LED program card or the LCD program box to the ESC. (purchase separately)
• Proportional brake with 9 levels of brake amount/maximum brake force and 9 levels of drag brake force.
• 5 levels of acceleration /punch from soft to aggressive for different vehicles, tires and tracks.
• Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail-safe (throttle signal loss protection).
• Capacitor Protection(Only MAX5)：Innovative Capacitor Protection effectively protects capacitors from exploding and causing irreversible damage to the ESC because of overload.
• Single-button ESC programming and factory reset.
• Advanced programming via portable LED program card or multifunction LCD program box. (purchase separately)
• Firmware upgrade via HOBBYWING multifunction LCD program box (item sold separately).

Specifications
