Pilot-RC Extra NG 90" (2.29 m) – ARF

The Pilot-RC Extra NG 90″ (2.29 m) ARF is a high-performance aerobatic aircraft designed for pilots seeking precision, power, and superior handling in a next-generation platform. With a robust yet lightweight balsa and plywood structure, large control surfaces, and refined aerodynamics, this Extra NG delivers crisp manoeuvrability, smooth tracking, and confident performance throughout sport aerobatics, 3D flight, and precision sequences. Compatible with both gasoline and electric power systems, the Extra NG 90″ offers excellent stability, predictable responsiveness, and dynamic energy — ideal for serious sport pilots and competition enthusiasts.

Key Features

NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
NEW! Patented quick assembly system for wings, stabilizer and SFG
NEW! Patented quick assembly system for canopy.
Film covering applied over a Genuine German Oracover (Ultracote) base
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed hinges (glued and pinned)
Internally mounted cowling – so no visible external screws exposed (two exposed screws underneath for easy mounting)
Removable wings and stabs
Laser engraved motor mounting position
Easy canister installation due to open construction
Pull push system for Rudder servo

This airframe can provide great 3D performance on popular engine like DLE-60, DLE-65 , Ephil 60, RCGF Stinger Pro 63 , GP-61, GP-76.

Be the first to review this product

Details

What’s Included

Complete air frame with all basic accessories (such as carbon fiber main undercarriage, tail-gear assembly and wing-tubes as well as fiberglass control horns and wheel pants)
“Spare” lower section cowl from transparent plastic – used to mark out correct location to cut the cowl for perfect fitting every time
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve

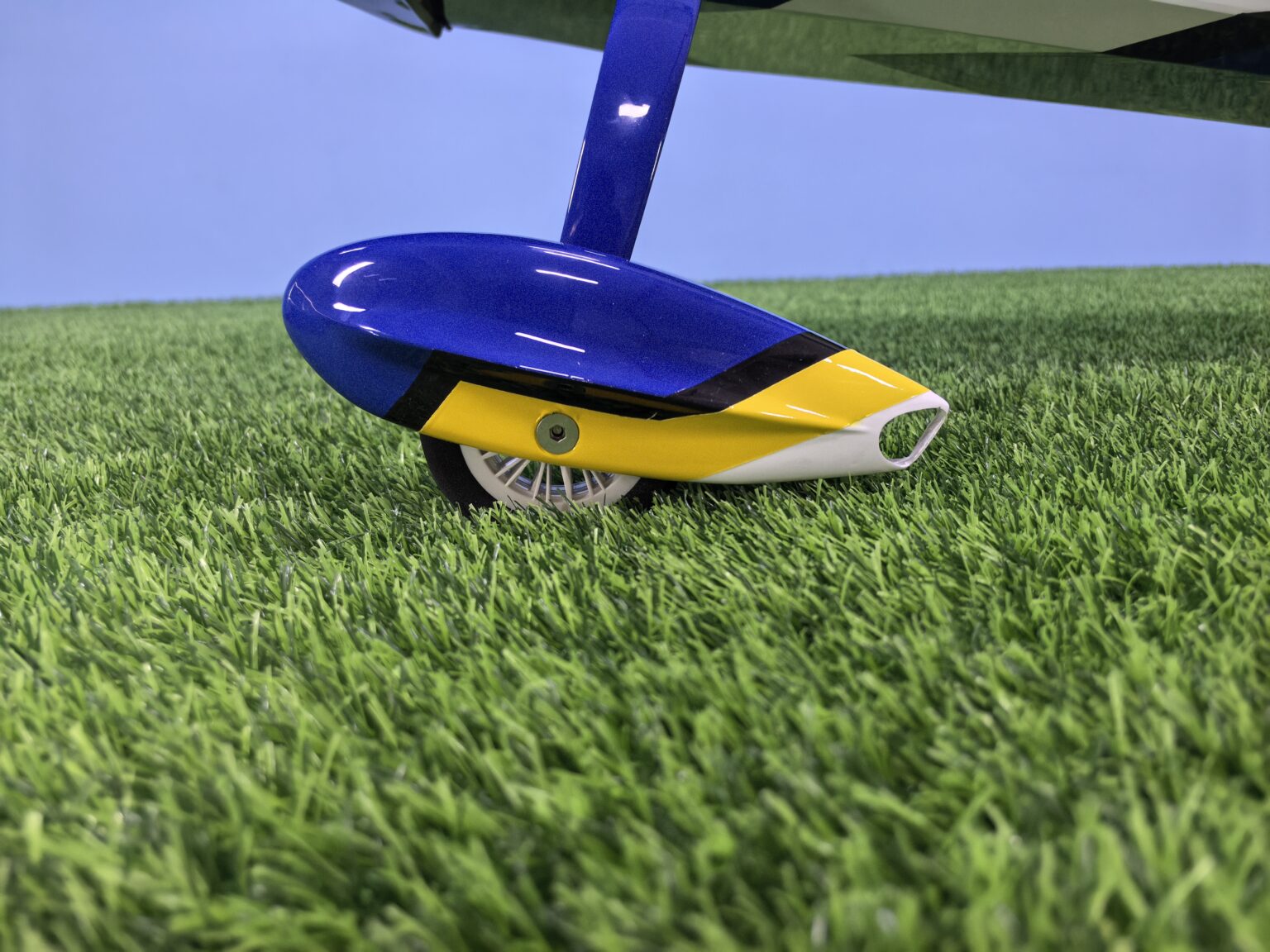

Wheels, axles and wheel pants
Pre-prepared pushrods with ball links
Matching carbon spinner, 4″

What's needed to complet

Motor

Gas 50-70cc (GP61, GP76, DLE60, DLE61, DLE65, Ephil 60)
electric: Dualsky GA6000

Servos:

5 high torque plus throttle // Uses x1 per aileron, x1 per elevator half and x1 on rudder

Pilot-Rc recommended hardware:

Servos: Pilot-Rc PW28AH (28Kg – 0,056s at 8,4v)
Servo arms: Pilot-Rc 1,6″ Aluminium arms (included with Pilot-Rc servos)
Wingbags: Pilot-RC wingbags

Extension wire lengths:

Each aileron: 25cm (to reach receiver direct)
Each elevator: 125cm
Rudder (pull pull) 125cm

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

Technical Specifications

Wingspan: 90 in (2.29 m)
Length: 86.2″ (2.19m)
Wing Area:1,430″² ( 9,224cm²)v
Flying Weight: Approx.20.11lbs (9.14kg)
Aircraft Type: Aerobatic / 3D
Recommended Power: 60-70cc gas engine or electric equivalent
Construction: Hybrid wood and composite
Assembly Level: ARF (Almost Ready to Fly)
Skill Level: Intermediate to Advanced

CENTER OF GRAVITY:

197mm Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.

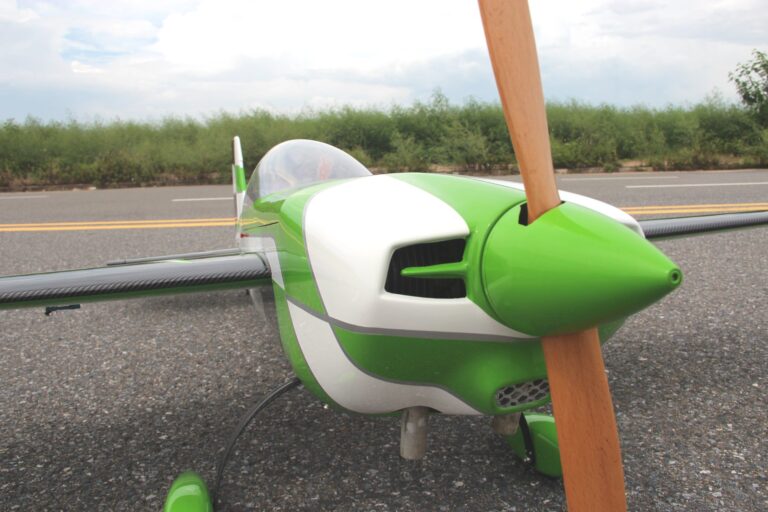

COWL and SCALE DETAILING
