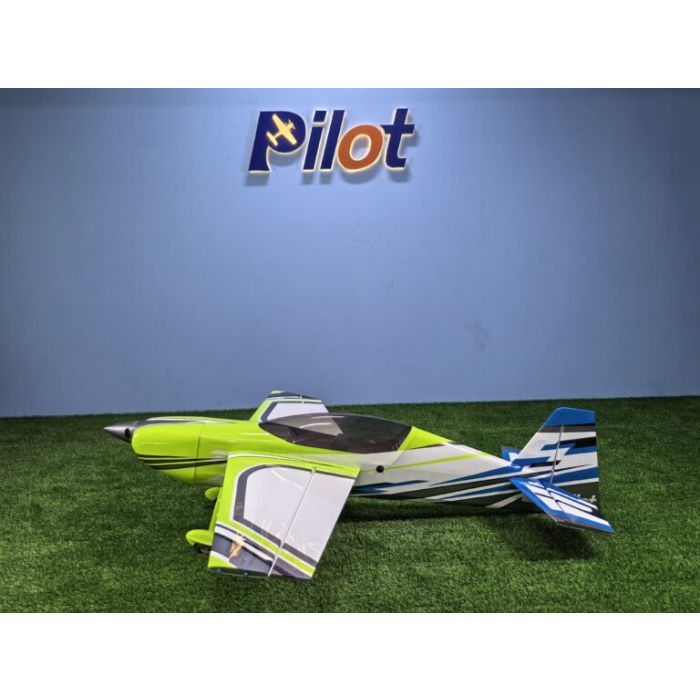

Pilot-RC Extra NG 78″ (1.97 m) – ARF

The Pilot-RC Extra NG 78″ (1.97 m) ARF is a next-generation aerobatic aircraft engineered for pilots who want precision, performance, and versatility in a single platform. Built with a reinforced balsa and plywood airframe and large control surfaces, the Extra NG delivers solid tracking, crisp manoeuvrability, and confident performance across sport aerobatics, 3D flight, and precision sequences. Designed to support both gasoline and electric power systems, this 78″ Extra NG offers excellent stability, predictable handling, and dynamic energy that satisfies sport pilots and competition flyers alike.

Key Features

- NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
- NEW! Patented quick assembly system for wings, stabilazer and SFG.
- NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
- Highly prefabricated, experienced builders can have air ready in under a day
- Pre-installed aileron and elevator hinges (glued and pinned)
- Easy canister installation due to open construction
- Removable wings and stabilizer
- Laser engraved motor mounting position
- Pull-Pull system for Rudder servo

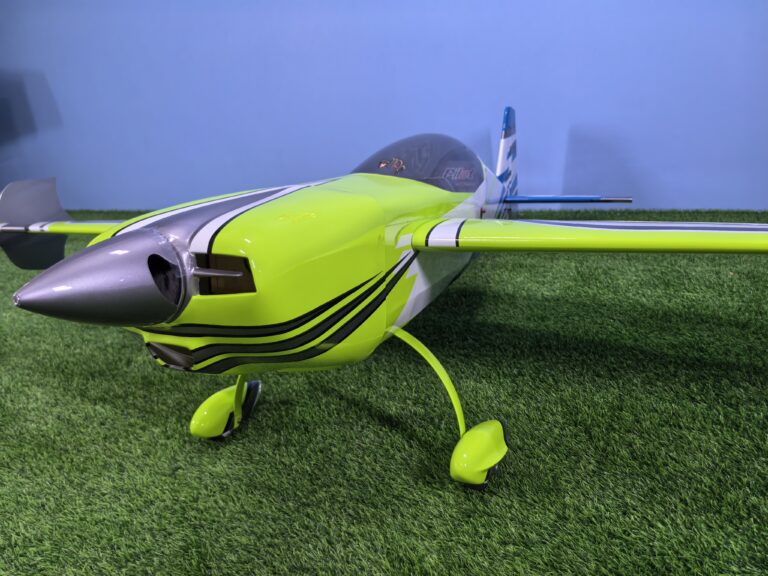

- Cowl fits both gasoline and electric motors
- This airframe can provide great 3D performance on popular engine like DLE35 , Ephil 38, RCGF Stinger 35 , GP38.

Be the first to review this product

Details

What’s Included

Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve

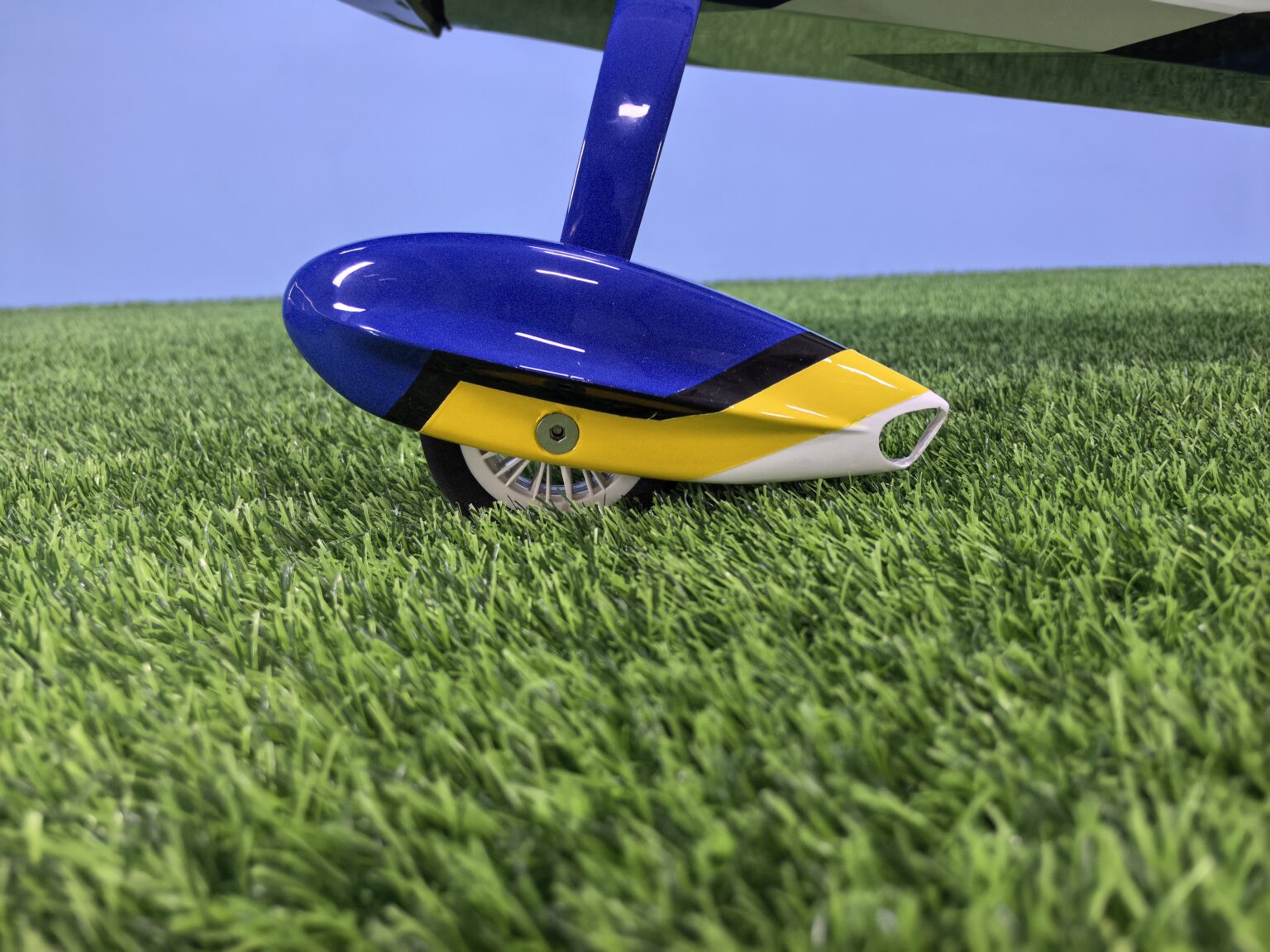

Wheels, axels and wheel pants
Pre-prepared pushrods with ball links
Matching carbon spinner, 3.5″

What's needed to complet

Motor:

30-40cc or equivalent electric

Servos:

5 Standard high torque plus throttle (Uses x1 per aileron and x1 on rudder)
1 standard for Throttle
Servo arms: Pilot-Rc 1,6″ Aluminium arms (included with Pilot-Rc servos)

Extension wire lengths:

Throttle: 10cm
Each aileron: 25cm (to reach receiver direct)
Each elevator: 70cmRudder: pull pull no extenstion required
Rudder: Pull-Pull no extension needed

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
