Pilot RC - LASER - 103'' V3 Color 09 - 35% 100-130cc

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CAD $2,135.99

Availability: In stock

SKU:

23349

Distributor Number

LAS-103V3-09

Manufacturer Number

LAS-103V3-09

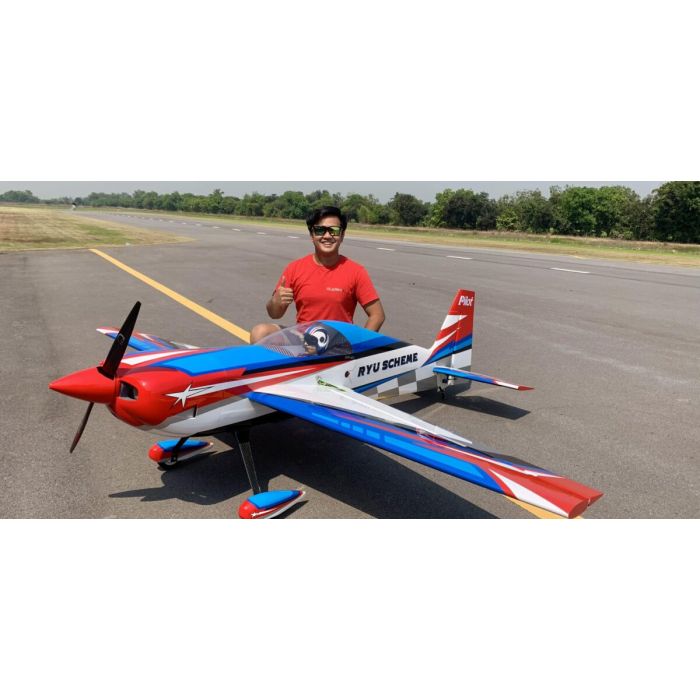

LASER - 103'' V3 - 35% 100-130cc– ARF Ryu Scheme

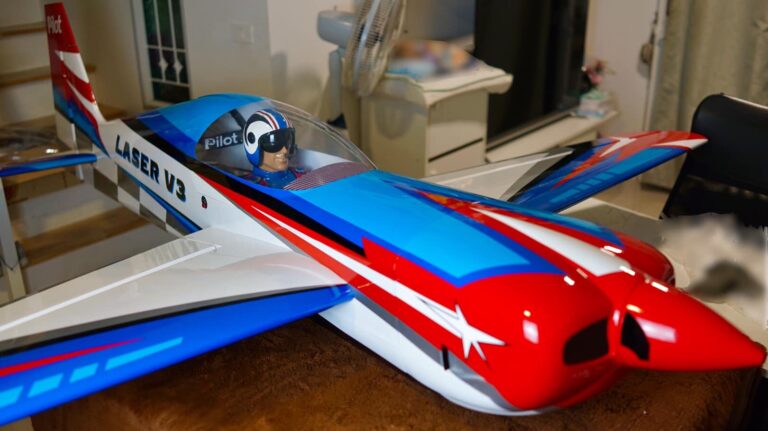

The Pilot-RC Laser 103″ (2.61 m) ARF is a high-performance aerobatic aircraft designed for pilots who demand precision, agility, and dynamic flight performance in a larger-scale platform. Built with a rigid yet lightweight balsa and plywood structure, oversized control surfaces, and refined aerodynamics, the Laser 103 delivers smooth tracking, crisp responses, and confidence-inspiring handling across sport aerobatics, laser-sharp pattern manoeuvres, and spirited 3D flight. Compatible with both gasoline and electric power systems, this model offers excellent stability, predictable flight characteristics, and the commanding presence of a top-tier aircraft.

Key Features

NEW! Full Carbon reinforced fuselage and wing using carbon laminated wood.
Genuine German Oracover (Ultracote) covering
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed hinges (glued and pinned)

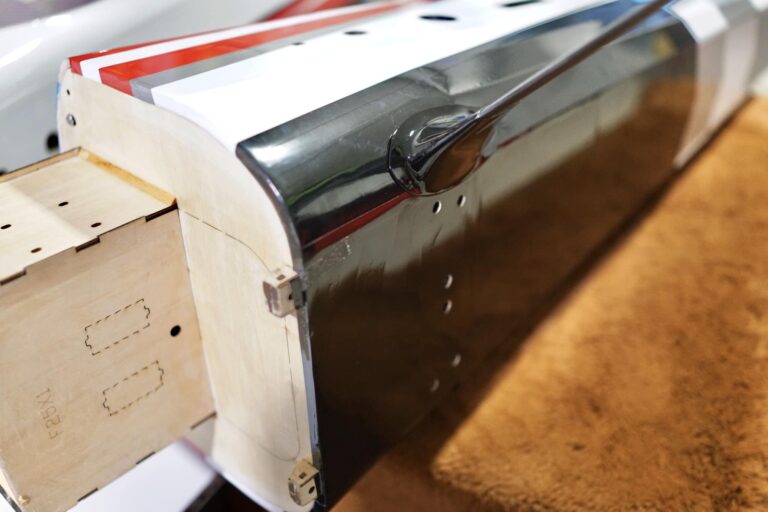

Internally mounted cowling – so no external screws exposed
Includes cooling baffles
Easy canister installation due to open construction
Removable rudder (as well as removable wings and stabs)
Laser engraved motor mounting position
Push-Pull system for Rudder servos

This airframe can provide great 3D performance on popular engine like

Gas 100-130cc (GP-123, DLE-111, DLE-120, DLE-130 , Ephil-123)

Be the first to review this product

Details

What’s Included

Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pantsPre-prepared pull-pull wires and pushrods with ball links
Matching carbon spinner, 5″

1What's needed to complet

Motor

Gas 100-130cc (GP-123, DLE-111, DLE-120, DLE-130 , Ephil-123)

Servos:

7-8 high torque (minimum 20kg) plus throttle // Uses x2 per aileron, x1 per elevator and x1 or x2 on rudder

Pilot-Rc recommended hardware:

Servos: Pilot-Rc PW48AH (48Kg – 0,10s at 8,4v)
Servo arms: Pilot-Rc 1,6″ Aluminium arms (included with Pilot-Rc servos)
Wingbags: Pilot-RC wingbags

Extension wire lengths:

Throttle: 40cm
Each aileron: 25cm + 75cm (nearest and furthest servo – to reach receiver direct)
Each elevator: 150cm
Rudder (pull pull) 140cm (when using direct – if installing pull pull, no required extension)

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

Technical Specifications

Wingspan: 90 in (2.29 m)
Length:99″ (2.514mm) with 5″ spinner
Wing Area:1,771 “² (11,430 cm²)
Flying Weight:26.35lbs (11.75kg)
Aircraft Type: Aerobatic / 3D
Recommended Power: 100-130cc gas engine or electric equivalent
Construction: Hybrid wood and composite
Assembly Level: ARF (Almost Ready to Fly)
Skill Level: Intermediate to Advanced

CENTER OF GRAVITY:

194mm Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
