DLE Engine - DLE-40cc Twin Gas Engine - DLE40

This is the DLE-40cc Twin Cylinder Gasoline Engine
                          with Electronic Ignition.

FEATURES: Electronic ignition delvers smooth idle, easy starting and
            powerful throttle transition, spiral wire wrap eliminates
            interference

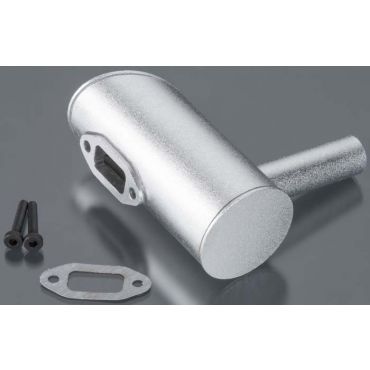

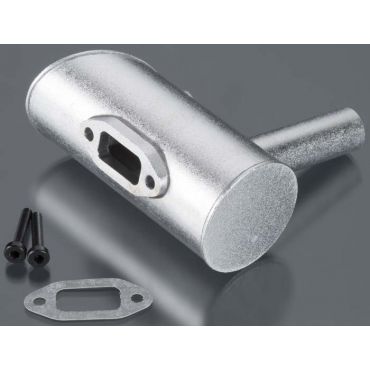

          Updated muffler design for increased noise reduction, excellent
            aeration and power
          Sealed crankshaft ball bearings
          Optimized pumper carburetor with phenolic insert to insulate
            carburetor from engine heat
          Lightweight pistons for fast acceleration, excellent compression and
            low vibration
          Composite backplate mount

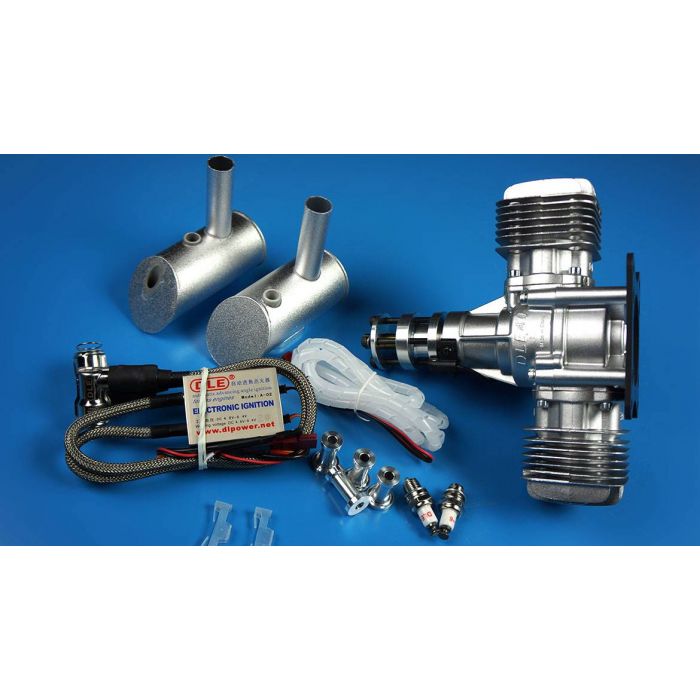

INCLUDES: DLE-40 Gasoline Engine with Electronic Ignition, NGK CM6 Spark Plugs,
            Electronic Ignition, Mufflers, four 0.98" (25mm) Standoffs
            and Instruction Manual

REQUIRES: 87 octane gasoline
          2-cycle oil, mix ratio for this engine is 30 parts gas to one part
            oil and must be followed exactly for warranty consideration
            and optimum performance
          4.8 - 6V NiMH/NiCd, or 6.6V LiFe or 7.4V LiPo battery for ignition
            (separate receiver style pack can be used) (LiPo & LiFe requires
            voltage regulator)
          Propeller: 19x8, 19x10, 20x8, 20x10
          Field Equipment

SPECS:    Displacement: 2.45 cu in (40.0 cc)
          Bore (x2): 1.26" (32mm)
          Stroke (x2): 0.98" (25mm)
          RPM Range: 1,500-8,500
          Performance: 4.8 HP @ 8,500RPM
          Idle Speed: 1500RPM
          Compression Ratio: 10.5:1
          Overall Weight: 3.3lbs (1.5kg)
          Engine Weight: 2.58lbs (1170g)
          Muffler Weight (x2): 3.6oz (102g)
          Ignition Module Weight: 5.3oz (149g)
          Engine Mount Standoff Weight: 0.7oz (19g)
          Miscellaneous Item Weight: 2oz (56g)
          Width between Cylinder Heads: 7.1" (180mm)
          Total Width Including Spark Plugs: 9.05" (230mm)
          Distance between Mounting Hole Centers/Narrow Side: 2.1" (54mm)
          Distance between Mounting Hole Centers/Wide Side: 2.7" (70mm)
          Length/Backplate to Outer Edge of Prop Drive Hub: 6.3" (161mm)
          Distance from Crankshaft Center/Outer edge of Carb: 3.5" (90mm)
          Standoff Length: 0.98" (25mm)
          Spark Plug Gap: 0.018 - 0.020" (0.45mm - 0.51mm)

            Carburetor Settings; (carb is preset at factory and should require
             only small adjustments)
          Idle Adjustment Screw: Turn clockwise to increase idle speed,
            conterclockwise to decrease idle speed
          Low Speed Needle: Turn needle to fully closed position, then open
            1.25 turns
          High Speed Needle: Turn needle to fully closed position, then open
            1.5 turns-tachometer is recommended when setting high speed
            needle to obtain maximum speed
