DLE Engine - DLE-30cc Gas Engine

This is the DLE 30cc Gasoline Powered Engine with Electronic Ignition
                         and Rear Mounted Carburetor.

FEATURES: Two sealed bearings on crankshaft-simple design for lighter weight
          Aluminum alloy crankcase
          Rear mounted pumper carburetor ensures easier installation and smooth
            idling and dependable fuel flow during flights

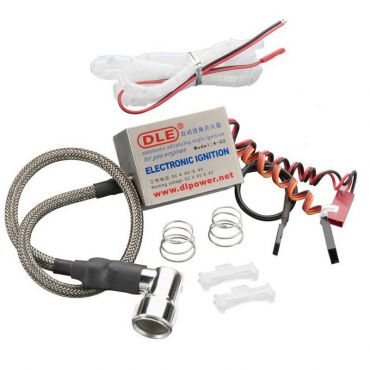

          Fully automatic electronic ignition
          Two year limited warranty through Hobby Services beginning at date
            of purchase

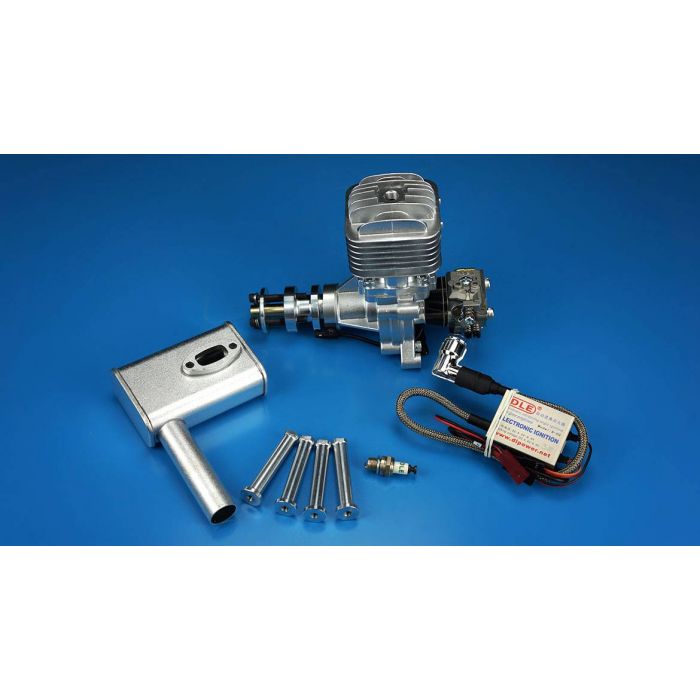

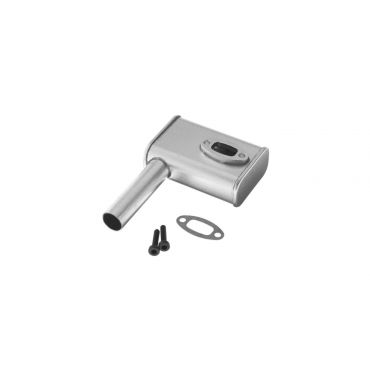

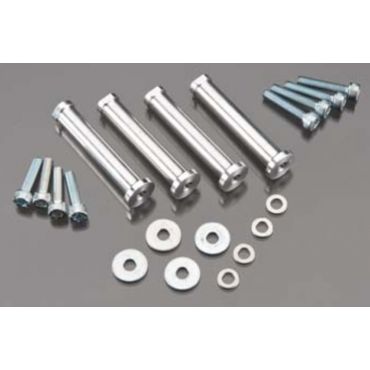

INCLUDES: Engine, spark plug, four standoffs, ignition, muffler, muffler
            gasket, two 5x20mm muffler bolts, four 5x60mm mounting bolts
            instruction manual

REQUIRES: Gasoline with at least 87 octane rating
          2-cycle oil, mix ratio for this engine is 30 parts gas to one part
            oil and must be followed exactly for warranty consideration
            and optimum performance
          4.8 - 6V NiMH/NiCd, or 6.6V LiFe or 7.4V LiPo battery for ignition
            (separate receiver style pack can be used) (LiPo & LiFe requires
            voltage regulator)
          Propeller, 1/8" gasoline tubing, and field equipment

SPECS:    Output Power: 3.7 HP at 8,500 RPM
          Idle Speed: 1,600 RPM
          RPM Range: 1,600-8,500
          Static Thrust: 8.5kg Pulling Force/100 meters altitude
            7.5kg Pulling Force/1,800 meters altitude
          Displacement: 1.86cu in (30.5cc)
          Bore: 1.42" (36mm)
          Stroke: 1.18" (30mm)
          Compression Ratio: 7.6:1
          Crankshaft Thread: 5mm
          Weight: Engine, 2lbs (910g)
                  Muffler, 2.1oz (60g)
                  Ignition, 4.2oz (120g)
          Gasoline/Oil Mixture: 30:1
          Gasoline Octane Rating: 87
          Recommended Propellers: 18x8 for break-in, 18x10, 19x8, 20x8
          Spark Plug: CM6
            Carburetor Adjustments;
          Low Speed Needle: 1.5 turns out as a starting point, adjust for a
            smooth idle and a reliable transition to high throttle
          High Speed Needle: 1.5-2 turns out from closed, adjust needle to peak
            RPM, if engine slows or dies at full throttle, the high-speed
            mixture is likely too lean
          Distance Between Mounting Hole Centers Same Side: 2.1" (54mm)
          Distance Between Mounting Hole Centers Opposite Side: 2.7" (70mm)
          Height from bottom/Crankcase to top of Cylinder Head: 5.4" (138mm)
          Width of Cylinder Head: 2.5" (65mm)
          Distance Between Muffler Mounting Hole Centers: 1.3" (34mm)

COMMENTS: To avoid permanent damage to the electronic ignition system, NEVER
            turn your DLE engine over with the system switched on and the plug
            not installed.

Note: For engine dimensions, see attached document
