DLE Engine - DLE-20RA Gas Engine - DLE020RA

This is the DLE-20cc Rear Exhaust Gasoline Engine with Electronic Ignition.

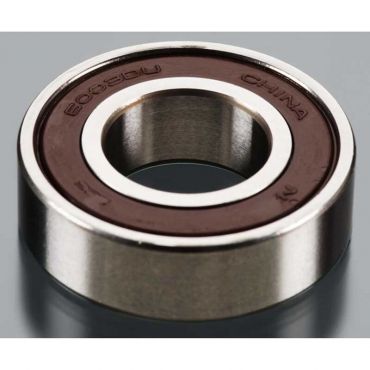

FEATURES: Sealed crankshaft bearings, efficient design for lighter weight
          Two petal reed valve rear induction with DLE customized carburetor
          Redesigned piston is lighter for faster acceleration, better
            compression, and lower vibration

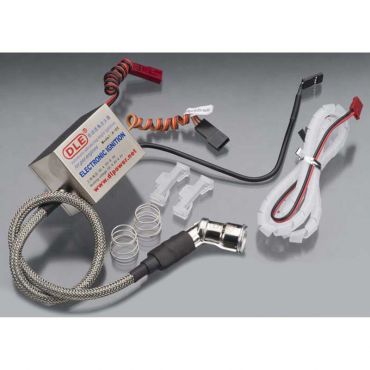

          Newly designed circuitry and software in electronic ignition provides
            better idle and improved transition, and also allows a wider range
            of ignition battery voltages from 4.8-8.4V

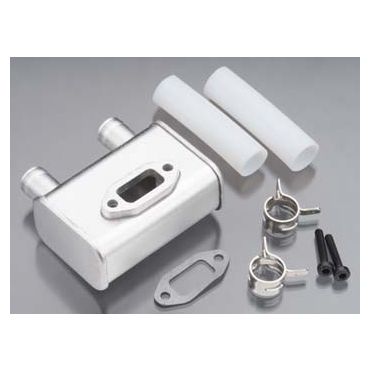

          Rear exhaust with newly designed muffler with two outlet stingers
            that alloy engine to breathe better and produce more power
          Lightweight aluminum alloy crankcase
          Two year limited warranty through Hobby Services beginning at date
            of purchase

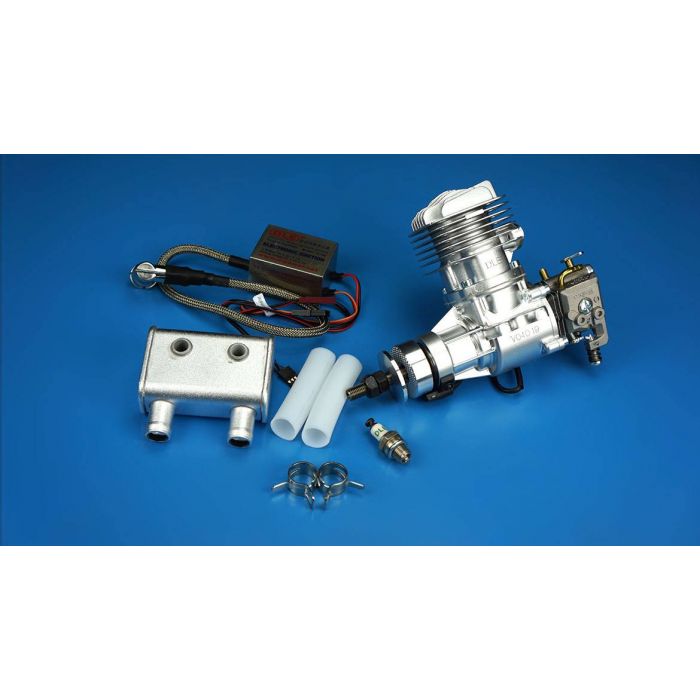

INCLUDES: DLE-20cc Rear Exhaust Gasoline Engine with Electronic Ignition,

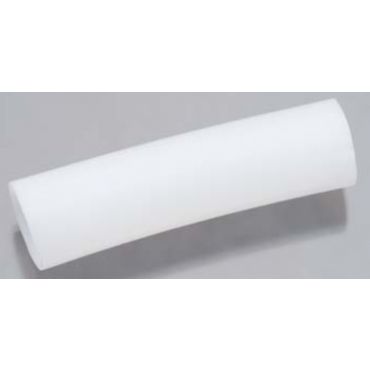

            Muffler, two Muffler Extension Tubes with Clamps, Muffler Gasket
            two 4x20mm Muffler Screws, Spark Plug, and Manual

REQUIRES: Gasoline with at least 87 octane rating
          2-cycle oil, mix ratio for this engine is 30 parts gas to one part
            oil and must be followed exactly for warranty consideration
            and optimum performance
          4.8 - 8.4V battery for ignition, separate receiver style pack can be
            used (LiPo & LiFe requires voltage regulator)
          Propeller and field equipment

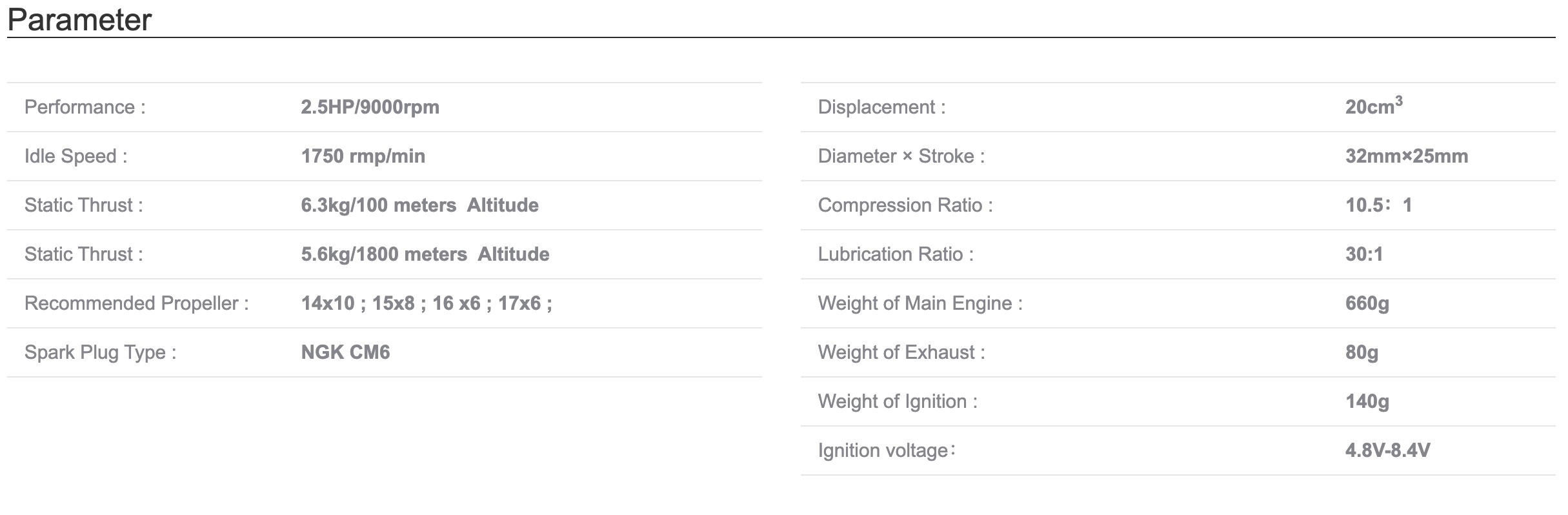

SPECS:    Output Power: 2.5 HP at 9,000RPM
          Idle Speed: 1,700RPM
          Static Thrust: 13.14lbs (6.3kg) 328ft (100m) altitude
                         12.6lbs (5.6kg) 5,900ft (1800m) altitude
          Displacement: 1.22 cu in (20cc)
          Bore and Stroke: 1.26 x .98 (32 x 25mm)
          Compression Ratio: 10.5:1
          Weight, Engine Only: 1.7lbs (660g)
                  Exhaust: 2.8oz (80g)
                  Ignition: 4.6oz (130g)
          Fuel Mixture: 30:1
          Fuel Octane Level: 93
          Propeller Range: 14x10, 15x8, 16x6, 17x6
          Ignition Battery: 4.8 - 8.4V
          Replacement Spark Plug: NGK CM6

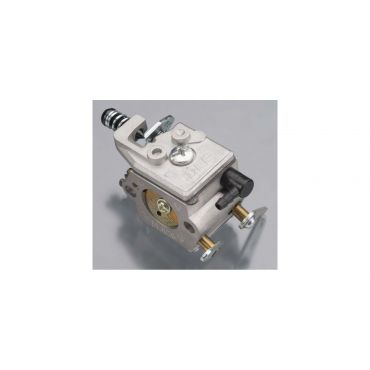

          Carburetor Settings:
            Low Speed Needle: 1.5 turns out, adjust until engine idles smooth
             and transitions to a high speed without dying or flooding
            High Speed Needle: 1.5 turns out, adjust to peak RPM
