DLE Engine - DLE-170cc Gas Engine - DLE170

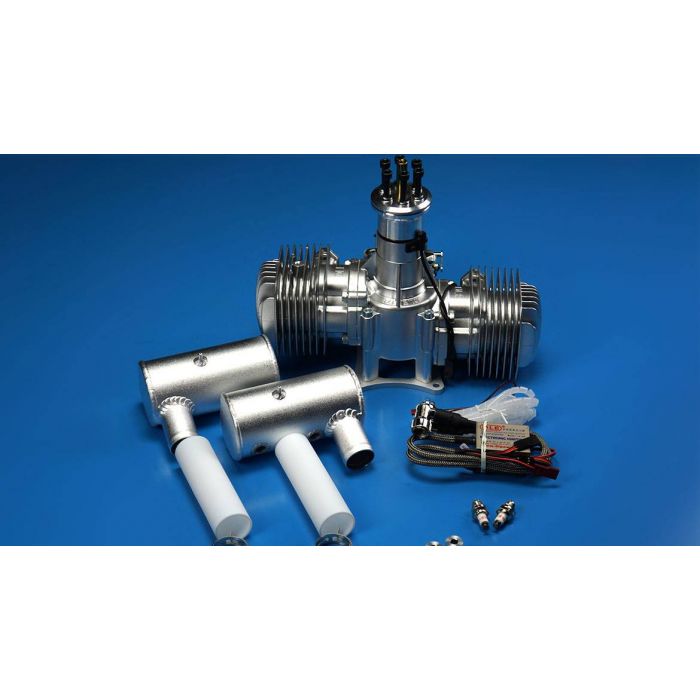

This is the DLE-170cc Gasoline Powered Engine with
                           Electronic Ignition.

FEATURES: Horizontally opposed twin cylinders for low vibration operation
          Special aluminum alloy crankcase
          Electronic ignition for simpler starts, higher performance and
            minimal RF noise
          Sealed ball bearings
          Double V-type reed valves, bottom induction
          Two year limited warranty through Hobby Services beginning at date
            of purchase

INCLUDES: DLE-170cc Gasoline Engine with two Mufflers with Gaskets and Mounting
            Hardware, two Spark Plugs, Electronic Ignition, Mount, Throttle
            Arm Extension, four Machined Aluminum Standoffs, Mounting Template
            and Instruction Manual

REQUIRES: 87 octane gasoline
          2-cycle oil, mix ratio for this engine is 30 parts gas to one part
            oil and must be followed exactly for warranty consideration
            and optimum performance
          Ignition Battery: Two 4.8 - 6V NiCd or NiMH batteries OR
            7.4V LiPo Packs (LiPo & LiFe use requires voltage regulator)
            (separate receiver style pack can be used)
          Propeller: 30x12 or 32x10

SPECS:    Displacement: 170 cc (10.37 cu in)
          Bore: 2.05" (52mm)
          Stroke: 1.57" (40mm)
          Weight: 9.06lbs (4110g)
          RPM Range: 1,100-9,000
          Output: 17.5 hp @ 9,000 rpm
          Compression Ratio: 9.5:1
          Gasoline/Oil Mixture: 30:1
          Weight: Engine 7.83lbs (3,550g)
                  Two Mufflers: 7.05 oz (200g) combined weight
                  Ignition: 5.64oz (160g)
          Replacement Spark Plug: NGK CM6 (DLEG5626) or equivalent
          Carburetor Settings: Carburetor was preset from the factory and only
            requires small incremental adjustments.
            Low Speed Needle: 1 turn open
            High Speed Needle: 1 turn open
           Adjust high speed needle to peak RPM. If the engine slows or dies,
            the high speed mixture is too lean.
           Adjust low speed needle for a smooth idle and reliable transition to
            high throttle. If engine dies when throttle is advanced, the
            mixture is too lean. If engine stumbles when throttle is advanced,
            the mixture is too rich.
