Top Flite - Cessna 182 Skylane .60-.91 GP/EP ARF, 81'' - TOPA0906
CAD $1,014.99
Availability:
Out of stock
SKU:
3139
Distributor Number
TOPA0906
Manufacturer Number
A0906
Overview

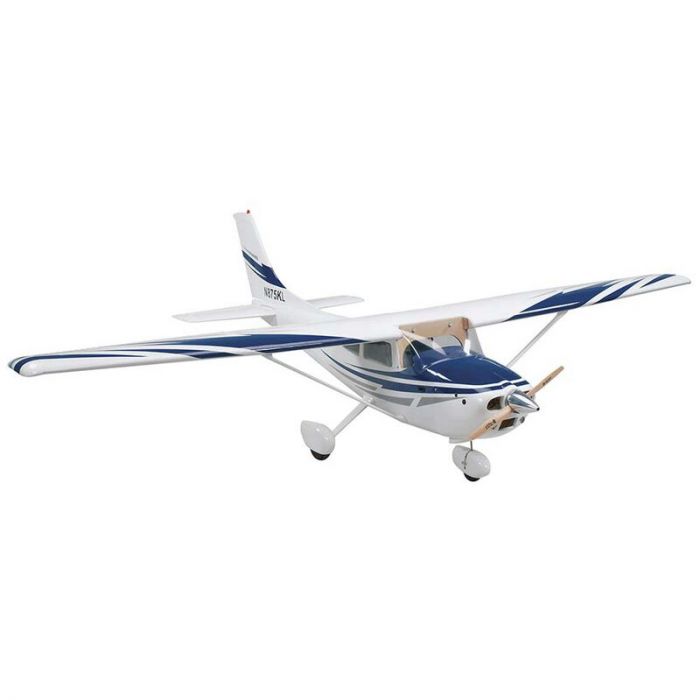

The look of the Cessna Skylane 182 is unmistakable and easy to enjoy with this Gold Edition ARF. The attention to authentic touches is obvious at every turn, from the built-in lighting system to the twin radio antenna on the wing. But what’s even more remarkable is the ease of reproducing those details and the gentle handling that makes this ARF a great choice for virtually any pilot.
Features
Construction: Balsa and ply
Wings: One-piece with plywood wing joiner
Aileron Control: Dual servo
Covering: Top Flite MonoKote
Cowl: Painted fiberglass
Cockpit Detail: Seats and instrument panel
Lights: Two landing lights in cowl, one navigational light on each wing and red MARS beacon light on top of fin (requires separate receiver battery)
Spinner: Polished aluminum, 2.25" (57mm) diameter
Landing Gear: Main, two piece fiberglass, Nosegear 0.20" (5mm) diameter prebent wire
Wheel Pants: Constructed of fiberglass, white in color
Wheels: Three foam, two main 3.25" (82mm) diameter, one nosewheel
Engine Mount: Two-piece composite
Fuel Tank: 14oz (420cc)
Building Time: Ready to fly in 15-20 hours
Needed to Complete
Engine: .60-.91 cu in (10-15cc) two-stroke OR .91-1.20 cu in (15-20cc) four-stroke OR
Motor: Rimfire 120 (50-65-450) Outrunner
LiPo Batteries: Two connected in series if using electric motor
Radio: 6-channel
Servos: Six standard with at least 44oz/in (3.2kg/cm) torque
24" (610mm) Servo Extensions: Two for ailerons
12" (305mm) Servo Extensions: Six for ailerons, flaps and wing tip lights
Y Harnesses: Two for aileron and flap surfaces
Receiver Packs: 1000mAh minimum and 600mAh pack for flying lights
What's in the box?
(1) Top Flite Cessna Skylane Gold Edition Airplane with decals, all hardware, clear plastic windshield and side glass, fiberglass tail cone, engine mount, cowl, three wheels, and wheel pants
(1) User Manual
Specifications
Wingspan: 81 in (2060mm)
Wing Area: 898 sq in (57.9 dm2)
Weight: 11.5 - 12.5lb (5220 - 5670g)
Wing Loading: 30 - 32 oz/sq ft (92 - 98 g/sq dm)
Length: 64 in (1630mm)
Airfoil: Semi-symmetrical
CG (Center of Gravity): 4-5/16" (110mm) back from the leading edge of the wing
Control Throws: Low Rate / High Rate
Elevator: 3/4" (19mm) 10° 1-1/16" (27mm) 15°
Rudder: 5/8" (16mm) 9° 1" (25mm) 15°
Ailerons: 1/2" (13mm) 14° 5/8" (16mm) 17°
Flaps: 1/2 - 1" (25mm) 18° down
full - 2" (51mm) 36° down
Specifications
Completion Level: Almost Ready-To-Fly
Flaps: Yes
Material: Wood
Product Length: 64 in (1630mm)
Receiver: Sold Separately
Skill Level: Level 4
Speed Control: Sold Separately
Wingspan: 81 in (2060mm)
More Information
Distributeur numero
TOPA0906
Numéro Manufacturier
A0906
Country
CHINA
Brand
Top Flite
Airplanes Selection
ARF/RTF
UPC
707768009060
