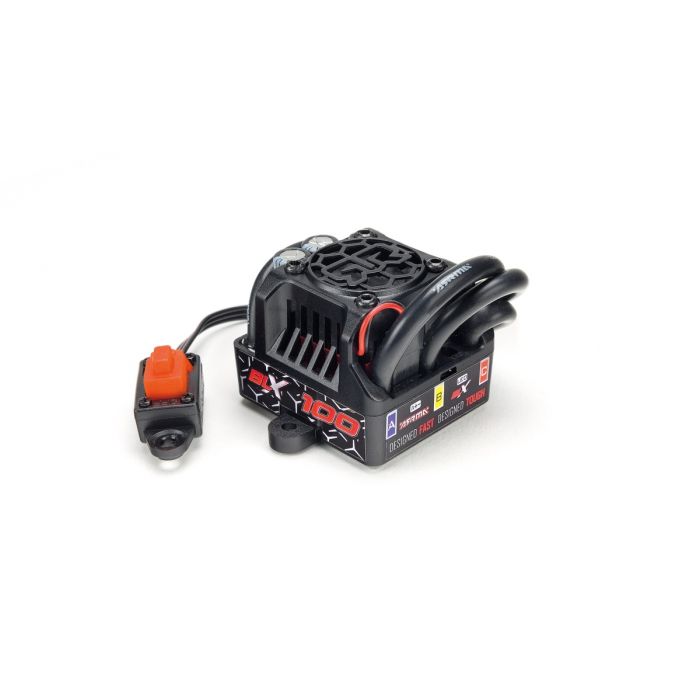

ARRMA RC - AR390069 BLX100 Brushless 10th 3S ESC 4x4 - ARAM0160
CAD $175.59
Availability:
Out of stock
SKU:
18577
Distributor Number
ARAM0160
Manufacturer Number
AR390069
OVERVIEW:
The BLX100 100A waterproof ESC provides consistent power control and is 3S LiPo ready.
FEATURES:
Fitted with a super-reliable EC5 connector and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX100 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.
The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.
SPECIFICATION
| Battery usage | 2S LiPo (7.4V) or 3S LiPo (11.1) / 4-9 Cell NiMH |
| Low Voltage Cut-Off (LVC) | 3.4V per cell |
| Thermal Protection Temperature | 125°C / 257°F |
| Over-Voltage Protection | Over 12.6V |
| BEC Voltage | 6V |
| BEC Current | 4A |
| ESC Length | 43mm / 1.69" |
| ESC Height | 34mm / 1.34" |
| ESC Width | 54.5mm / 2.15" (Including hold-down tabs) |
| ESC Weight | 120g / 4.2oz |
| Receiver Wire Length | 170mm / 6.70" |
| Battery Wire Length | 125mm / 4.92" |
| Motor Wire Length (Including Connector) | 200mm / 7.87" |
| Switch Length | 110mm / 4.33" |
| Switch Width | 12.8mm / 0.5" |
| Switch Height | 18mm / 0.71" |
| Motor Bullet Connector Size | 4mm / 0.16" |
| Wire Specifications | 12AWG |
| ESC Battery Connector Type | EC5 |
INCLUDES:
1 x BLX100 Brushless 3S ESC
More Information
Distributeur numero
ARAM0160
Numéro Manufacturier
AR390069
Country
China
Brand
ARRMA RC
Car Truck parts
ARRMA RC
Car Truck Models
1/8 Typhon 4x4 4WD 3S Brushless, 1/10 Big Rock Crew Cab 4WD 3S, 1/10 Granite 4x4 BLX 3S, 1/10 Senton 4WD BLX 3S
UPC
5052127030151
