Castle Creations - 6301 QUICK FLD PROGRAMMER AIR - 010-0063-01
CAD $57.99
Availability:
In stock
Only 1 left
SKU:
6499
Distributor Number
CAS010-0063-01
Manufacturer Number
010-0063-01

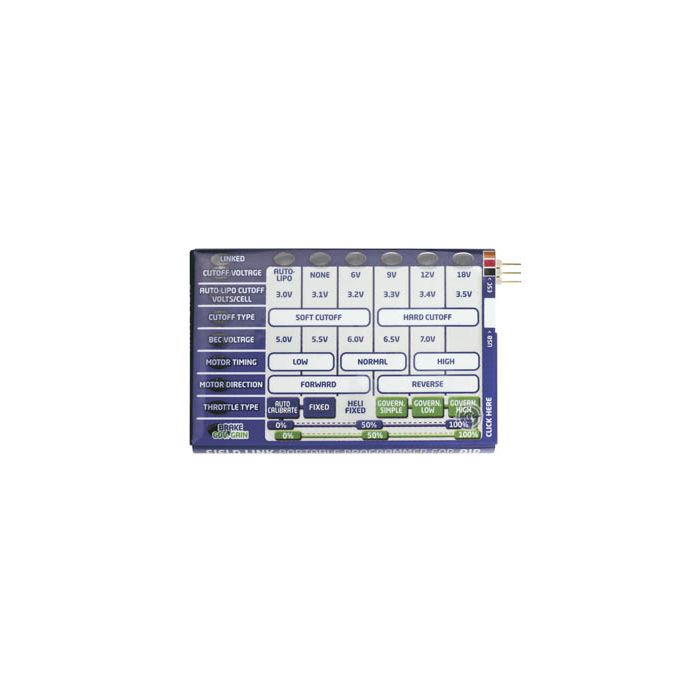

Program your controllers in the field!
Field Link Portable Programmer allows you to modify the most commonly used settings in your Castle controller at the touch of a single button.
Field Link for Flying settings:
- Cutoff voltage
- Auto LiPo volts per cell (3.0, 3.1, 3.2, 3.3, 3.4, 3.5)
- Low voltage cutoff type
- BEC voltage setting*
- Motor timing*
- Motor direction
- Throttle type*
- Brake
- Governor gain*
*If applicable to your ESC. Please check "Specifications" section for full list of functions.
| Field Link Settings ESC Compatibility | |||||
|---|---|---|---|---|---|
| Setting | Talon | Phoenix Edge | Phoenix Edge HV | Thunderbird | CC Bec and CC BEC Pro |
| Cutoff voltage |  |
|
|
|
 |
| Auto LiPo volts/cell | |
|
|
|
|
| Low voltage cutoff type | |
|
|
|
|
| BEC voltage | |
|
|
|
|
| Motor timing | |
|
|
|
|
| Motor direction | |
|
|
|
|
| Throttle type | |
|
|
|
|
| Brake | |
|
|
 |
|
| Governor gain | |
|
|
|
|
Specific Usage Notes:
Thunderbird Controllers
Thunderbird controllers have fewer settings than may be represented on the Field Link. The Field Link will simply skip over these unsupported option rows.
CC BEC and CC BEC Pro
CC BEC and CC BEC Pro have adjustable output voltages only. Use the BEC VOLTAGE row on the Field Link to change their output value.
CC BEC
CC BEC does not supply output power when connected to the Castle Link or Field Link. It must therefore be powered with a Y harness like the HV ESC in diagram 2 for field use. The motor pack is not required for this specific setup.
CC BEC Pro
To use the Field Link you must use the adapter cable provided with your CC BEC Pro. Connect one side to the Field Link and the other side to the “Link Port” on your CC BEC Pro.
| Technical Specs | |
|---|---|
| System requirements: | Castle Link software is compatible with Windows Vista, Windows 7, Windows 8 and Windows 10. |
| Items needed for operation: | Field Link contains a proprietary interface adapter and standard USB cable. All you need is an available USB port on your PC. |
| Application guidelines: |
Works with all Castle Link compatible air controllers including: Phoenix Edge, Phoenix Edge Lite, Phoenix Edge HV, Phoenix Edge Lite HV, Talon, Phoenix, Phoenix HV, Phoenix Ice, Phoenix Ice HV, Thunderbird (limited to select Thunderbird features). Requires USB 2.0 on a Windows PC running Castle Link software. |
| Tech notes: |
Field Link card cannot change settings on controller series that do not have the listed settings. See settings compatibility chart above for details. Macintosh users may take advantage of software such as Parallels Desktop, VMware Fusion, or Apple's Boot Camp along with Windows Vista, Windows 7, Windows 8 and Windows 10. to run the Castle Link software, provided the Macintosh has an Intel processor. Macintosh installation is not supported by Castle Creations. If your Field Link LEDs are flashing continuously, it is likely in need of a firmware update. See the Field Link Firmware Compatibility page for more details. |
Product Features:
Full Castle Link Functionality
This Field Link portable programmer can also act as a Castle Link USB Programming kit, allowing you to connect your controller to your Windows™ PC for easy programming. Adjustable settings include:
- Access expanded programming and parameters for Castle controllers
- Access to all firmware updates, including added features sets released from Castle Engineering, at no charge.
- Intuitive Demo Mode capability
- Ability to default ESC to factory settings
- Ability to save setup profiles for later use
- Ability to download and view data logs (on applicable controllers)
More Information
Distributeur numero
CAS010-0063-01
Numéro Manufacturier
010-0063-01
Country
USA
Brand
Castle Creations
UPC
899598001953
