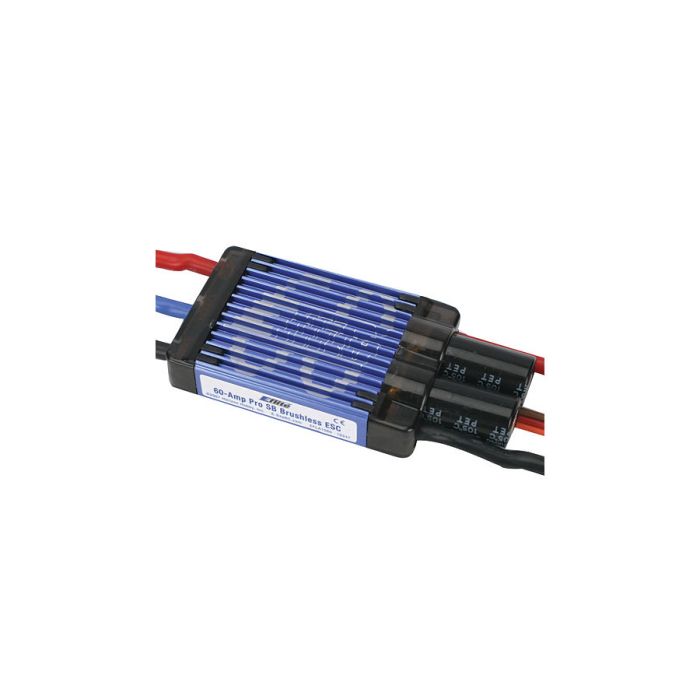

E-flite - 60-Amp Pro Switch-Mode BEC Brushless ESC (V2) - EFLA1060B
CAD $171.29
Availability:
Out of stock
SKU:
3452
Distributor Number
EFLA1060B
Manufacturer Number
EFLA1060B
Key Features
- Up to 60 amps continuous current with proper air flow and 75 amps burst current (15 seconds)
- 5A continuous current, 5V switch-mode BEC circuit (proper cooling and airflow required)
- Stronger BEC for support of most 3-axis stabilization systems
- Drive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage
- 3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
- Finned heat sinks
- Programmable motor braking
- Safe power-arm mode prevents accidental starts
- Programmable low voltage cutoff with settings for 3-cell Li-Po (9V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
- Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
- Programmable soft start for helis and airplanes
- Auto motor shut down if signal is lost or there is interference
- Programmable timing—5 user-selectable ranges for use with a large variety of brushless motors
- Utilizes new smaller MOSFET technology to minimize weight
- Radio system power on/off switch
- Pre-wired connectors—E-flite® EC3™ connector on battery input and 3.5mm gold bullet connectors on motor output leads
Overview
The E-flite® 60-Amp Pro Switch-Mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.
Product Specifications
| Continuous Maximum Current: | 60A |
| Input Connector Types: | 13 AWG with E-flite® EC3™ connector |
| Output Connector Types: | 13 AWG with 3.5mm gold bullet connectors |
| Momentary Peak Current: | 15 sec @ 75A with proper cooling air flow |
| Length: | 2.85 in (73.0mm) |
| Width: | 1.30 in (33.0mm) |
| Height: | 0.61 in (15.5mm) |
| Weight: | 2.65 oz (75.0 g) |
| Cells w/BEC: | 3–6S Li-Po or 9–18 Ni-MH/Ni-Cd |
Articles, Reviews, How-Tos & More
More Information
Distributeur numero
EFLA1060B
Numéro Manufacturier
EFLA1060B
Country
China
Brand
E-flite
UPC
605482079195
