Hitec - HS-5585MH CORELESS HV

TECH NOTES

      This is the Hitec HS-5585MH High Voltage, High Speed Digital Servo.

FEATURES: Rated for 2S LiPo operation
          Ideal for 1/10 scale monster trucks, 1/8 scale buggies and truggies,
            and high performance airplanes up to 35%
          Heavy duty metal gears and dual ball bearings
          Coreless motor
          Two year limited warranty through Hitec beginning at date of purchase

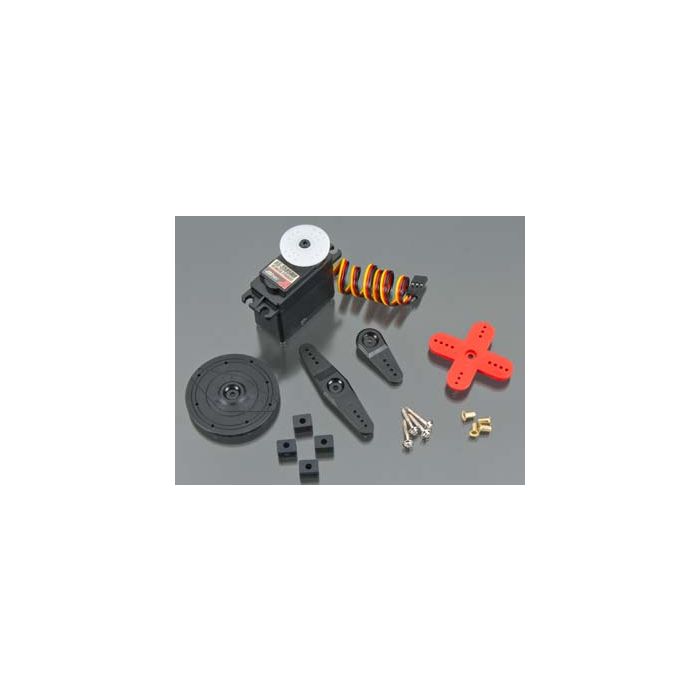

INCLUDES: HS-5585MH Servo with 0.94" (24mm) Round Servo Horn, 1.8" (45mm) Round
            Servo Horn, 2.3" (59mm) Double Sided Servo Arm, 1.1" (27mm) Single
            Sided Servo Arm, 1.6" (42mm) Four Point Horn, Mounting Hardware and
            Instructions

SPECS:    Operating Voltage: 6.0 - 7.4V DC
                      6.0V                7.4V
          Speed:      0.17 sec/60°        0.14 sec/60°
          Torque:  194 oz-in (11 kg-cm)   236 oz-in (14 kg-cm)
          Size: 1.57 x 0.78 x 1.49" (39.8 x 19.8 x 37.8mm)
          Weight: 2.10oz (60g)
          Wire Length: 11.8" (30mm)
          Wire Gauge: 25AWG
          Operating Temperature Range: -4 to 140°F
          Idle Current: 4mA
          Stall Current: 2100mA @ 6.0V, 2700mA @ 7.2V
          Potentionmeter Type: 4 slider 1M cycle

COMMENTS: A note on coreless motors-a conventional servo motor has a steel core
            armature wrapped with wire that spins inside the magnets. In a
            Coreless design, the armature uses a wire mesh that forms a cup
            that spins around the outside of the magnet. This arrangement is
            much lighter resulting in smoother operation and faster response
            time.
