Traxxas - 1/10 TRX-4 Ford F-150 Ranger XLT High Trail Edition - Brown

CAD $869.99
Availability: Out of stock
SKU:
21353
Distributor Number
TRA92046-4BROWN
Manufacturer Number
92046-4

Traxxas TRX-4 Ford F-150 Ranger XLT High Trail Edition 1/10 Scale 4x4 Trail Truck, Fully-Assembled, Waterproof Electronics, Ready-To-Drive, With TQi 2.4GHz 4-Channel Radio System, XL-5 XHV Speed Control, Hi/Low Transmission, Remote Locking Differentials, And Painted Body. Requires: Battery And Charger (Brown).

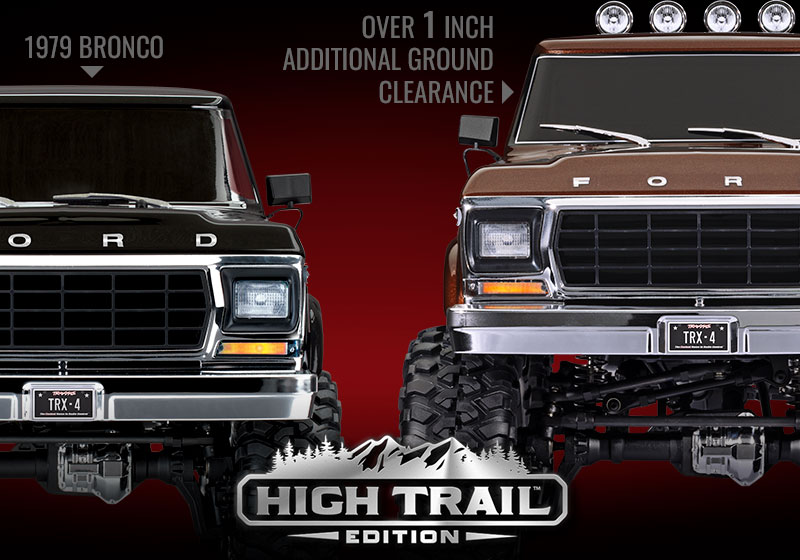

BIG, LIFTED PERFORMANCE

The Traxxas lineup of exciting and capable High Trail TRX-4® models is expanding with the all-new 1979 Ford® F-150® truck. Sporting top-of-the-line Ranger XLT trim, the Ford F-150 High Trail is equipped with a factory-installed Long Arm Lift Kit and stands over an inch taller than our standard height TRX-4. The exceptional all-terrain capability, smooth running drivetrain, and Traxxas Tough® durability drivers expect from TRX-4 are all there. Black roll bar, chrome light housings, longer wheelbase, and slotted aluminum-finish mags complete the authentic, period correct look.

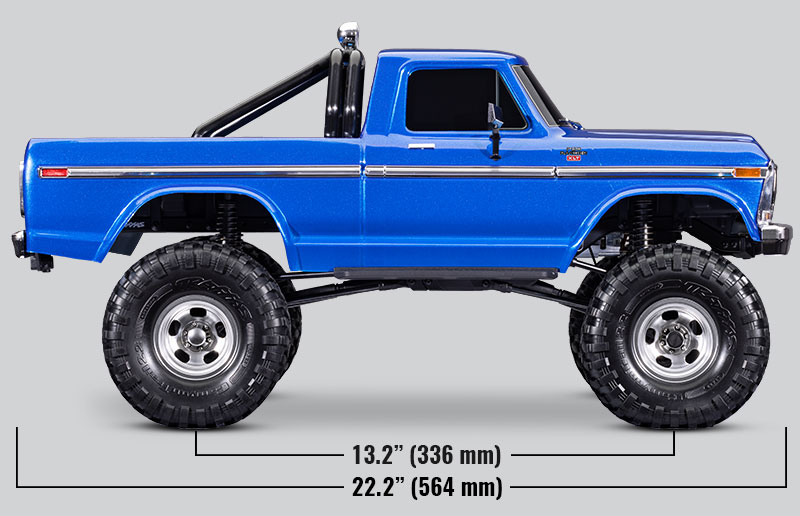

EXTENDED 336MM WHEELBASE

F-150’s extended steel ladder frame lengthens the wheelbase to 336mm to capture the pickup’s real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.


CLIPLESS BODY MOUNTING

The clipless body’s hidden latching system gives F-150 High Trail Edition clean, flowing lines for new level of scale realism and convenience. On the trail, F-150’s clipless body holds tight when you need it, but releases in just seconds to access the chassis.


What’s Included:

What’s In The Box:


-TRX-4, Ready-To-Explore® model
-XL-5 HV waterproof electronic speed control
-Titan® 21T reverse rotation motor
-TQi™ 2.4GHz radio system with cruise control
-High quality maintenance tools

What You’ll Need:


-BatteriesTRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
-ChargerTraxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model #2971).
-AA Alkaline BatteriesFour AA alkaline batteries for the transmitter.

TRX-4 DATA


Length: 22.30 inches (566mm) Front Track: 10.60 inches (270mm) Rear Track: 10.60 inches (270mm) Center Ground Clearance: 4 inches (99mm) Weight (w/o battery): 7.34lbs (3.33kg) Height (overall): 10.82 inches (275mm) Wheelbase: 13.23 inches (336mm) Approach Angle: 73.5° Departure Angle: 49.67° Breakover Angle: 67° Front Shock Length: 4.33 inches (110mm) Rear Shock Length: 4.33 inches (110mm) Front Wheels: 2.2 x 1.34 inches (56 x 34mm) Rear Wheels: 2.2 x 1.34 inches (56 x 34mm) Front Tires: 5.3 x 2.14 inches (135 x 54mm) Rear Tires: 5.3 x 2.14 inches (135 x 54mm)

Hex Size: 12mm Speed Control: XL-5 HV Motor (electric): 21T Reverse Rotation Transmission: 2-speed High/Low, Remote Shifting Gear Pitch: 32 Pitch Differential Type: 4 Gear, Remote Locking Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers Brake Type: Electronic “Hill Hold” Drive System: Shaft Driven 4WD Steering: Chassis Mounted Servo Servo: 2075X Metal Gear Transmitter: TQi 2.4 GHz 4-Channel Transmitter Receiver: 6533 Skill Level: 1 Battery Tray: 158.8 L x 47 W x 23/26mm H
Type: High-torque brushed motor
Size: 550
Weight: 390g (13.76oz)
Length: 3.071” (78mm) overall length, 2.25” (57mm) can length, 1.532” (38.9mm diameter)
Turns: 21T reverse rotation
Voltage: 16.8V
Input Voltage: 6–7 Cells NiMH, 2–3s LiPo Case Size: 1.23” W x 2.18” D x 1.04” H Weight: 2.6oz (74g) Motor Limit: 21-turns (550 size) On Resistance Forward: 0.004 Ohms On Resistance Reverse: 0.004 Ohms Peak Current - Forward: 100A Peak Current - Reverse: 100A Braking Current: 60A Continuous Current: 18A BEC Voltage: 6.0 VDC BEC Current: 1A Power Wire: 14 Gauge / 5” Input Harness Wire: 26 Gauge / 14.5”
Transistor Type: MOSFET PWM Frequency: 1700Hz Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off) Thermal Protection: Thermal Shutdown Profile selection:
  • Sport Mode: 100% FWD, 100% brakes, 100% REV
  • Race Mode: 100% FWD, 100% brakes, no REV
  • Training Mode:* 50% FWD, 100% brakes, 50% REV
  • Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
  • Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
Single-button setup: Yes, Traxxas EZ-Set® * Patented
  • Officially Licensed 1979 Ford F-150® Ranger XLT Body
    • Scale details: grille, chrome bumpers, side trim & mirrors, door handles, and wipers
    • LED-ready headlights, tail lights, and roll bar
    • Authentic decal sheet
    • Full Nylon composite wheel wells and floor pans
  • Clipless Body mounting
    • Clipless design for smooth body appearance
    • Rugged internal body cage for added rigidity
      • Body details mount directly to internal frame
  • Trail-tuned XL-5 HV Waterproof Electronic Speed Control
    • Fully waterproof design
    • Five drive profiles
      • Sport Mode — forward / brake / reverse
      • Race Mode — forward / brake / no reverse
      • Training Mode — 50% forward / 100% brake / 50% reverse (patented)
      • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
      • Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
    • Traxxas EZ-Set® one-button setup
    • Large, efficient heat sink
    • Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
    • Two stage low voltage protection (LVD)
  • Motor
    • Powerful Titan® 21T reverse rotation motor with internal cooling fan
    • Precision, preset gear mesh adjustments
    • Motor retention separate from gear mesh
  • Factory-Installed Long Arm Lift Kit
    • Increases ground clearance over 1”
    • Maintains precise steering geometry
    • Accommodates oversize 2.2” wheels and tires
  • Extended Wheelbase
    • Long 336 mm wheelbase for improved stability
    • Full-length 1.5 mm steel frame rails
    • Bumpers adjust fore and aft
    • Rugged rock rails adjust for width
    • Wire routing clips integrated into frame rails
  • Portal Axles
    • Increase ground clearance
    • Eliminate torque twist
    • Steel gears
    • Improve axle geometry and reduce strain on driveshafts
  • Drivetrain
    • Full-time shaft driven 4-wheel drive
    • Tough 6 mm stub axles
    • Steel front CV driveshafts
    • Hardened steel rear axle shafts
    • Remote locking steel gear differentials with cable-actuation
    • Steel gear transfer case
  • Innovative Battery Compartment
    • Hinged battery strap allows quick and easy battery access
    • No pins to lose
    • Accommodates different height batteries
    • Accepts full-size long battery packs
    • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
    • Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
  • Transmission
    • Two speed high/low range with remote shifting
    • Dual horizontal shafts
    • Twin friction plate slipper clutch
    • Easily removed for servicing
  • Steering
    • Chassis mounted 2075X metal gear digital servo
    • Superior 45° steering angle
    • Direct steering (no servo saver)
    • Steel servo horn
    • Steering geometry corrected for bump steer
  • Suspension
    • Front — 3 link with panhard
    • Rear — Triangulated 4 link
    • Heavy-duty rod ends with steel hollow balls
    • 5 mm diameter steel link rods with 4 mm threaded ends
  • Extended Aluminum GTS Shocks
    • Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
    • Extra-long aluminum bodies for greater articulation
    • Threaded bodies with collars easily adjust ride height
    • Silky smooth damping for the toughest trails
    • O-ring cap seal and dual X-ring shaft seals
  • Oversize Wheels and Tires
    • 2.2” slotted mag wheels wheels with hub inserts
    • Pre-mounted 2.2” Canyon Trail tires with trail-tuned foam inserts
    • Trail tuned S1 rubber compound
    • 12 mm steel hex
  • Transmitter
    • TQi 2.4GHz 4-channel transmitter
    • Traxxas Link enabled
    • Telemetry ready #6533 5-channel micro receiver with failsafe
    • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
    • Exclusive Cruise Control feature for extended trail driving
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle endpoints
    • High 13ms frame rate and near-zero latency for responsive control
  • Patented O-ring sealed watertight receiver box keeps the micro receiver dry
  • Sealed Ball Bearings
  • Hex hardware with rust-resistant black oxide coating
