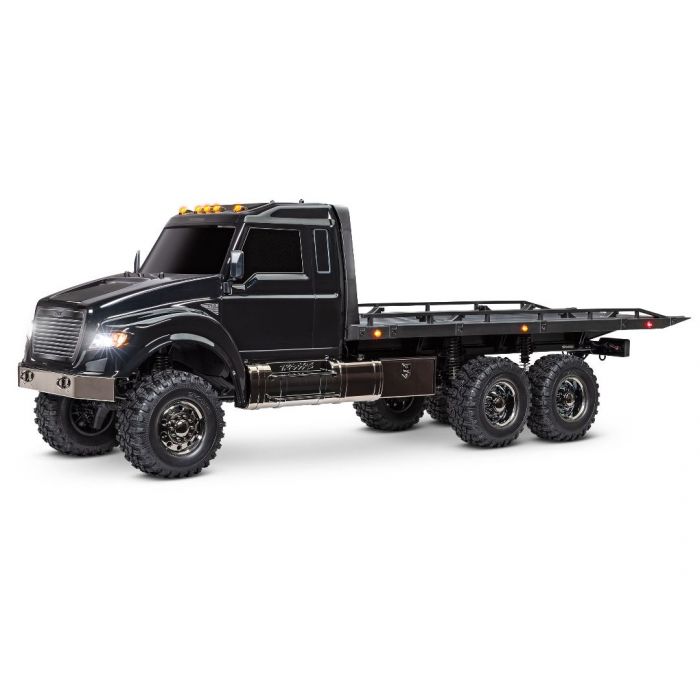

Traxxas - 1/10 TRX-6 Hauler w/ LEDs & Winch - Black Ultimate RC Hauler 6X6
CAD $1,089.99
Availability:
Out of stock
SKU:
21991
Distributor Number
TRA88086-84BLACK
Manufacturer Number
88086-84
Traxxas TRX-6 Ultimate RC Hauler: 1/10 Scale 6X6 Electric Flatbed Truck. Ready-to-Drive with TQi Traxxas Link Enabled 2.4GHz Radio System, XL-5 HV ESC (fwd/rev), Titan 550 motor and LED Lights. Black
MODEL 88086-84: TRX-6® Ultimate RC Hauler w: 1/10 scale 6WD electric flatbed truck, Ready-To-Drive®, with TQi™ Traxxas Link™ enabled 2.4 GHz radio system, XL-5™ HV ESC (fwd/rev), Titan® 550 motor, and Pro Scale® Winch.
| Length (overall): | 37.5 inches (953 mm) |
|---|---|
| Length (chassis): | 34.0 inches (863 mm) |
| Front Track: | 9.8 inches (245 mm) |
| Rear Track: | 9.8 inches (249 mm) |
| Ground Clearance: | 3.14 inches (80 mm) |
| Weight: | 10.7 pounds (4.83 kg) |
| Height (overall): | 11.9 inches (303 mm) |
| Wheelbase (front & intermediate axle): |
18.6 inches (471 mm) |
| Wheelbase (front & rear most axle): |
23.7 inches (603 mm) |
| Approach Angle: | 60° |
| Departure Angle: | 55° |
| Breakover Angle: | 57° |
| Front Shock Length: | 3.54 inches (90 mm) |
| Rear Shock Length: | 3.54 inches (90 mm) |
| Front Wheels: | 2.2 x 1.02 inches (56 x 26 mm) |
| Rear Wheels: | 2.2 x 1.02 inches (56 x 26 mm) |
| Battery Tray: | 158.75 L x 47 W x 23/26 mm H |
| Front Tires: | 4.64 x 1.89 inches (118 x 48 mm) |
| Rear Tires: | 4.64 x 1.89 inches (118 x 48 mm) |
| Hex Size: | 12 mm |
| Speed Control: | XL-5 HV |
| Motor (electric): | Titan® 21T Reverse Rotation |
| Transmission: | 2-speed High/Low, Remote Shifting |
| Gear Pitch: | 32P |
| Differential Type: | 4 Gear, Remote Locking |
| Chassis Structure / Material: | Steel Ladder Frame with Nylon Composite Crossmembers |
| Brake Type: | Electronic “Hill Hold” |
| Drive System: | Shaft-Driven 6WD |
| Steering: | Chassis Mounted Servo |
| Servo: | 2075X Metal Gear |
| Transmitter: | TQi™ 2.4GHz 4-Channel Transmitter |
| Receiver: | 6533 |
| Skill Level: | 1 |
| Type: | High-torque brushed motor |
|---|---|
| Size: | 550 |
| Weight: | 390g (13.76oz) |
| Length: | 3.071” (78mm) overall length, 2.25” (57mm) can length, 1.532” (38.9mm diameter) |
| Turns: | 21T reverse rotation |
| Voltage: | 16.8V |
| Input Voltage: | 6–7 Cells NiMH, 2–3s LiPo |
|---|---|
| Case Size: | 1.23” W x 2.18” D x 1.04” H |
| Weight: | 2.6oz (74g) |
| Motor Limit: | 21-turns (550 size) |
| On Resistance Forward: | 0.004 Ohms |
| On Resistance Reverse: | 0.004 Ohms |
| Peak Current - Forward: | 100A |
| Peak Current - Reverse: | 100A |
| Braking Current: | 60A |
| Continuous Current: | 18A |
| BEC Voltage: | 6.0 VDC |
| BEC Current: | 1A |
| Power Wire: | 14 Gauge / 5” |
| Input Harness Wire: | 26 Gauge / 14.5” |
| Transistor Type: | MOSFET |
| PWM Frequency: | 1700Hz |
| Low Voltage Detection (LVD): | 2-Stage indicators, switchable (on or off) |
| Thermal Protection: | Thermal Shutdown |
| Profile selection: |
|
| Single-button setup: | Yes, Traxxas EZ-Set® |
| * Patented | |
| Transistor Type: | MOSFET |
|---|---|
| PWM Frequency: | 1700Hz |
| Low Voltage Detection (LVD): | 2-Stage indicators, switchable (on or off) |
| Thermal Protection: | Thermal Shutdown |
| Profile selection: |
|
| Single-button setup: | Yes, Traxxas EZ-Set® |
| * Patented | |
- Large-Scale RC Hauler Body
- Molded black chrome scale details
- Fuel tanks, tool boxes, side rails, and unique bumpers
- Molded side mirrors and roll bar
- Authentic decals
- Full Nylon composite wheel wells
- Detailed multi-piece hauler bed with adjustable wheel chocks
- Installed LED Light Kit
- Molded headlights with amber marker lights
- Clearance and marker lights on roof, roll bar, and hauler bed
- Tail lights integrated into rear bumper
- Sealed waterproof design
- 25 individual LED lights
- Regulated voltage for consistent and reliable power output
- Trail-tuned XL-5 HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
- Two stage low voltage protection (LVD)
- Motor
- Powerful Titan® 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
- Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Extended Chassis Design
- Full-length 30” steel frame rails
- 1.5 mm thick for increased torsional rigidity
- Rails run from bumper to bumper
- Extended wheelbase for full length tow bed
- Bearing-supported intermediate driveshaft
- Wire management clips integrated into frame rails
- Drivetrain
- Full-time shaft driven 6-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
- Aluminum GTS Shocks
- Oil-filled coilover GTS shocks
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Transmission
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2075X metal gear digital servo
- Steel servo horn
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front — 3 link with panhard
- Intermediate — Dual triangulated 4 link
- Rear — Dual triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter lower steel link rods with 4 mm threaded ends
- Wheels and Tires
- 2.2” black chrome big rig wheels with hub inserts
- 2.2” Canyon RT all-terrain tires with foam inserts
- Sticky S1 rubber compound
- 12 mm steel hex
- Transmitter
- TQi™ 2.4GHz 4-channel transmitter
- Traxxas Link enabled
- Telemetry ready #6533 5-channel micro receiver with failsafe
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- High 13ms frame rate and near-zero latency for responsive control
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Sealed Ball Bearings
- Hex hardware with rust-resistant black oxide coating
What’s In The Box:
- TRX-6, Ready-To-Drive® model
- XL-5 HV waterproof electronic speed control
- Titan® 21T reverse rotation motor
- TQi™ 2.4GHz radio system with cruise control
- Bed winch
- High quality maintenance tools
- Batteries
TRX-6 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries.
- Charger
Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
